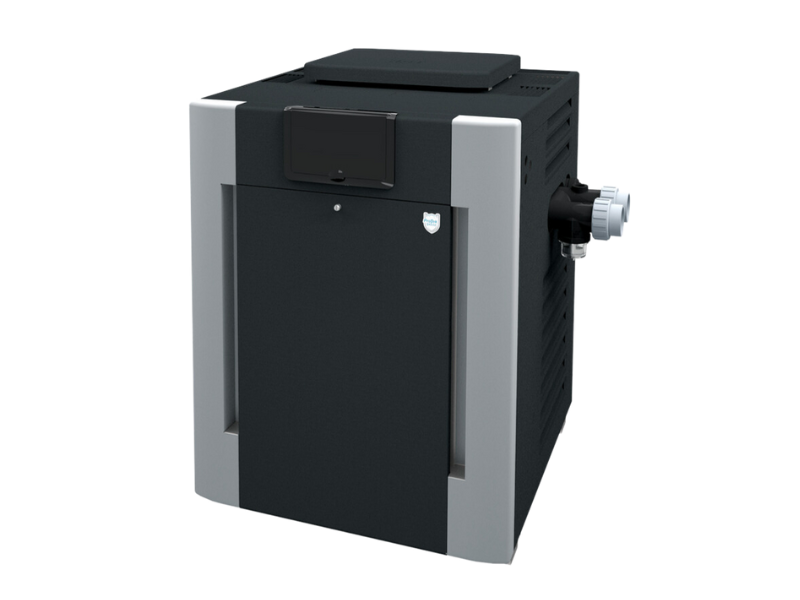

Parts for Rheem P-M206A-MN-X:
Digital, Pool/Spa Heater Polymer Headers, Rheem Designation w/built-in stackless top, 206A, Millivolt Pilot, Natural Gas, Cupro Nickel Tubes
Manufacturer: Rheem
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
111 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10026780 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 268.25 | ADD TO CART |
|
P10003460 | Burner | - | 13.000 | $ 22.66 | ADD TO CART |
|
P10031568 | Burner Orifice Nat #50* (0-1999 ft elevation) | - | 13.000 | $ 20.63 | ADD TO CART |
|
P10120180 | Burner Orifice Nat #51* (2000-5999 ft elevation) | - | 13.000 | $ 20.63 | ADD TO CART |
|
P10031570 | Burner Orifice Nat #52* (6000-8999 ft elevation) | - | 13.000 | $ 20.63 | ADD TO CART |
|
P10026788 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 535.36 | ADD TO CART |
|
P10000032 | High Limit Auto Reset 135°F Deg Surface Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135°F (Auto Gas Shut-Off) Red Epoxy prior to 12/2019 | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140°F Black Epoxy prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10120082 | Fuse 5 AMP | - | 1.000 | $ 35.54 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10122676 | Combination Valve Nat. MV | - | 1.000 | $ 562.87 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete - Units manufactured prior to 10/2019 | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10131522 | Tube Bundle Cupronickel - Units manufactured prior to 7/2013 | - | 1.000 | $ 2,296.22 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 36.69 | ADD TO CART |
|
P10113464 | O-Ring Gasket (2) | - | 1.000 | $ 40.13 | ADD TO CART |
|
P10113488 | Sensor Well Millivolt | - | 1.000 | $ 73.37 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 103.18 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 60.76 | ADD TO CART |
|
P10113472 | Bypass Dam/Shaft | - | 1.000 | $ 74.52 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10113478 | 2" CPVC Connector & Nut (2) | - | 2.000 | $ 94.01 | ADD TO CART |
|
P10113480 | O-Ring (2) | - | 2.000 | $ 17.20 | ADD TO CART |
|
P10113490 | Inlet/Outlet Header Baffle w/Header Dam | - | 1.000 | $ 97.45 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Water Pressure Switch Adj. | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113726 | Thermostat Knob | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10113508 | Knobstop | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10000084 | Wire/Harness Millivolt | - | 1.000 | $ 174.26 | ADD TO CART |
|
P10113718 | Control Bezel MV (Includes Dial Decal) | - | 1.000 | $ 196.03 | ADD TO CART |
|
P10000056 | Dial Decal MV | - | 1.000 | $ 34.39 | ADD TO CART |
|
P10113716 | Control Bezel Cover | - | 1.000 | $ 67.64 | ADD TO CART |
|
P10113750 | Gasket Insulation (Swaybrace & Jacket Top) | - | 1.000 | $ 127.25 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 414.06 | ADD TO CART |
|
P10000058 | Flow Switch Paddle | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10029378 | T & P Gauge | - | 1.000 | $ 157.05 | ADD TO CART |
|
P10000122 | Pilot Nat. MV | - | 1.000 | $ 183.42 | ADD TO CART |
|
P10119750 | Pilot Orifice Nat. MV | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 114.64 | ADD TO CART |
|
P10000078 | Pilot MTG Bracket MV | - | 1.000 | $ 55.02 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10000076 | Pilot Shield | - | 1.000 | $ 48.15 | ADD TO CART |
|
P10129086 | Refractory Common Lt & Rt | - | 1.000 | $ 356.52 | ADD TO CART |
|
P10129088 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 283.16 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10210305 | Poolstat Cover/Lock | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10026682 | Up Front Control Panel Green | - | 1.000 | $ 290.04 | ADD TO CART |
|
P10150045 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 303.43 | ADD TO CART |
|
P10026868 | Outer Stack Adapter | - | 1.000 | $ 81.39 | ADD TO CART |
|
P10145260 | "Pagoda" Top Green | - | 1.000 | $ 75.19 | ADD TO CART |
|
P10113306 | Nat. to Pro. MV Pilot | - | 1.000 | $ 382.13 | ADD TO CART |
| P10129964 | Burner Tray w/Burners Nat #50 Orifice (sea level) | - | 1.000 | $ 1,046.66 | ADD TO CART | |
| P10026754 | Burner Tray w/Gas Valve Nat #50 Orifice Millivolt (sea level) | - | 1.000 | $ 1,262.17 | ADD TO CART | |
| P21138081 | Burner Tray w/Burners Nat #51 (sea level) – Polymer/Cupro | - | 1.000 | $ 256.57 | ADD TO CART | |
| P21138088 | Burner Tray w/Gas Valve Nat #51 Orifice Millivolt (sea level) – Polymer Cupro | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10031590 | Burner Orifice Nat #53* (9000 + ft elevation) | - | 13.000 | $ 20.63 | ADD TO CART | |
| P21038753 | High Limit Auto-Reset 150°F Surface Mount (ASME Only) | - | 1.000 | $ 106.62 | ADD TO CART | |
| P21036539 | Heat Exchanger Assy Cupronickel - Units manufactured from 10/2019 | - | 1.000 | $ 2,856.81 | ADD TO CART | |
| P10029572 | Heat Exchanger Assy Cupronickel – Units manufactured from 7/2013 thru 9/2019 | - | 1.000 | $ 3,136.35 | ADD TO CART | |
| P10132002 | Heat Exchanger Assy Cupronickel – Units manufactured prior to 7/2013 | - | 1.000 | $ 3,136.35 | ADD TO CART | |
| P21039170 | Inlet/Outlet Header Complete - Units manufactured from 10/2019 | - | 1.000 | $ 779.55 | ADD TO CART | |
| P21038737 | Inlet/Outlet Header (Includes 6-HP) – Units manufactured from 10/2019 | - | 1.000 | $ 178.84 | ADD TO CART | |
| P10122834 | Inlet/Outlet Header (Includes 6-HP) – Units manufactured prior to 10/2019 | - | 1.000 | $ 728.21 | ADD TO CART | |
| P10029610 | Return Header (Includes 6-HP) | - | 1.000 | $ 218.96 | ADD TO CART | |
| P10029580 | Tube Bundle Cupronickel - Units manufactured from 7/2013 | - | 1.000 | $ 2,296.22 | ADD TO CART | |
| P10029588 | Baffle (Cupronickel Heat Exchanger) – Units manufactured from 6/2013 | - | 1.000 | $ 265.97 | ADD TO CART | |
| P21036532 | ProTek Shield TM Assembly | - | 1.000 | $ 90.57 | ADD TO CART | |
| P10173419 | Bypass Spring – Units with Plastic Bypass Valve (Units manufactured from 3/5/17 to 12/19) | - | 1.000 | $ 102.03 | ADD TO CART | |
| P21038750 | Pressure Switch 1.75 PSI Complete Kit (Units manufactured from 12/2019 to 6/2020) | - | 1.000 | $ 147.89 | ADD TO CART | |
| P21039129 | PRV | - | 1.000 | $ 175.40 | ADD TO CART | |
| P10113844 | Touch-up Paint Green | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10113846 | Touch-up Paint Dark Gray | - | 1.000 | $ 0.00 | ADD TO CART |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10031954 | Touch-up Paint Warm Dark Gray | - | 1.000 | $ 56.65 | ADD TO CART | |
| P10210304 | Tie Down Bracket (Optional) | - | 1.000 | $ 25.75 | ADD TO CART | |
| P10030232 | Flanged Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 1,783.79 | ADD TO CART | |
| P10030234 | NPT Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 748.81 | ADD TO CART | |
| P10120090 | NPT Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10030226 | Flanged Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 286.60 | ADD TO CART | |
| P10029978 | PC Board Shield (Optional) | - | 1.000 | $ 102.03 | ADD TO CART | |
| P21038492 | Gas Line Finish Flange | - | 1.000 | $ 18.56 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10119938 | Refractory Retainer Kit | - | 1.000 | $ 137.57 | ADD TO CART | |
| P10026548 | Jacket Top (Louvered) | - | 1.000 | $ 606.44 | ADD TO CART | |
| P10026574 | Flue Collector (Units with Polymer Header) | - | 1.000 | $ 621.35 | ADD TO CART | |
| P10028496 | Door Assy Raypak Cool Dark & Warm Dark Gray | - | 1.000 | $ 400.09 | ADD TO CART | |
| P10026730 | Door Assy Raypak Green | - | 1.000 | $ 409.26 | ADD TO CART | |
| P10028504 | Door Assy Rheem Cool Dark & Warm Dark Gray | - | 1.000 | $ 400.09 | ADD TO CART | |
| P10026738 | Door Assy Rheem Green | - | 1.000 | $ 405.82 | ADD TO CART | |
| P10028512 | Door Assy Ruud Warm Dark Gray (Units manufactured prior to 9/2012) | - | 1.000 | $ 233.86 | ADD TO CART | |
| P10125136 | Access Panel Set (3 Pcs Units with Polymer Header) | - | 1.000 | $ 335.89 | ADD TO CART | |
| P10026726 | Jacket Side Panel Right | - | 1.000 | $ 393.21 | ADD TO CART | |
| P10026728 | Jacket Side Panel Left | - | 1.000 | $ 420.72 | ADD TO CART | |
| P10026718 | Jacket Rear Panel (2 Pcs.) | - | 1.000 | $ 245.33 | ADD TO CART | |
| P10026678 | High Limit Cover prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART | |
| P10026680 | Base Heat Shield prior to 10/2019 | - | 1.000 | $ 98.59 | ADD TO CART | |
| P10028550 | Up Front Control Panel Cool Dark Gray | - | 1.000 | $ 96.30 | ADD TO CART | |
| P10028558 | Up Front Control Panel Warm Dark Gray | - | 1.000 | $ 143.30 | ADD TO CART | |
| P10026698 | High Limit Shield | - | 1.000 | $ 61.90 | ADD TO CART | |
| P10125140 | Weather Shield | - | 1.000 | $ 79.10 | ADD TO CART | |
| P21138020 | Base Riser (Canada only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10151628 | Outdoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 337.84 | ADD TO CART | |
| P10126976 | Stack Adapter | - | 1.000 | $ 216.67 | ADD TO CART | |
| P10125158 | "Pagoda" Top Cool Dark Gray | - | 1.000 | $ 154.77 | ADD TO CART |
