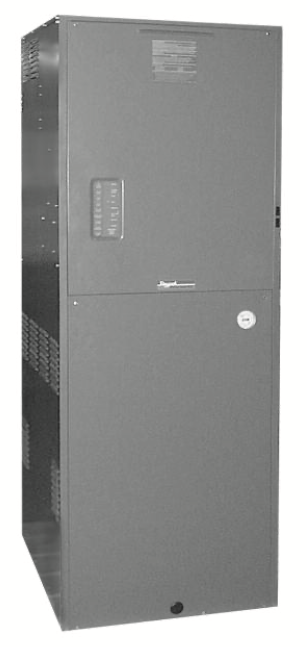

Parts for Raypak, Inc. WH9-1501:

ADB, Water Heater, 4-Stage, 1501

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


97 Parts

Component Description Serial Qty Price
Part Image P10119880 Ignitor-Spark Rod - 1 379.04 ADD TO CART
Part Image P10119882 Pilot Burner - 1 270.89 ADD TO CART
Part Image P10119892 Manual Reset High Limit 200 - 1 503.67 ADD TO CART
Part Image P10122740 Flow Switch - 1 357.41 ADD TO CART
Part Image P10113544 Printed Circuit Board Central Point Wiring - 1 1,030.00 ADD TO CART
Part Image P10000038 Printed Circuit Board U2 - 1 488.22 ADD TO CART
Part Image P10113550 Switch Pressure Vent Normally Closed - 1 208.06 ADD TO CART
Part Image P10113552 Switch Pressure Air Normally Open - 1 74.16 ADD TO CART
Part Image P10113434 Thermostat Manual Reset - 1 63.86 ADD TO CART
Part Image P10119884 Relay DPST 24 VAC - 1 83.19 ADD TO CART
Part Image P10113678 Time Delay Contactor - 1 189.52 ADD TO CART
Part Image P10113546 Ignition Control IID/PRV 75 PSI - 1 584.01 ADD TO CART
Part Image P10113500 Switch-Rocker SPST 16A - 1 41.20 ADD TO CART
Part Image P10119868 Contactor Pump 120V Coil - 1 127.72 ADD TO CART
Part Image P10125090 Auto On/Off Valve 1" (V-88) - 1 555.17 ADD TO CART
Part Image P10126060 Auto On/Off Valve 1-1/2" (V-88) - 1 703.49 ADD TO CART
Part Image P10113690 Orifice Pilot Nat - 1 22.66 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure - 1 292.52 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" - 1 148.50 ADD TO CART
Part Image P10126076 Valve Gas Manual A 1-1/2" - 1 1,319.43 ADD TO CART
Part Image P10113562 Valve Gas Manual B - 1 76.22 ADD TO CART
Part Image P10113564 Valve Pilot Gas Nat - 1 210.12 ADD TO CART
Part Image P10119830 Switch High Gas Pressure (optional) Not Shown - 1 297.01 ADD TO CART
Part Image P10131994 Return Header Bronze - 1 4,640.15 ADD TO CART
Part Image P10025998 Studbolt - 1 130.57 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1 86.52 ADD TO CART
Part Image P10113570 Well-Bulb Sensor 1/2"x 3-5/16" - 1 48.41 ADD TO CART
Part Image P10113452 Drain Valve - 1 101.97 ADD TO CART
Part Image P10119784 Flow Swich Paddle - 1 132.87 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1 70.04 ADD TO CART
Part Image P10119856 PRV 60 PSI - 1 305.91 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1 136.99 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1 135.96 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1 167.89 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1 145.23 ADD TO CART
Part Image P10113582 Remote Sensor for Low Water Cut-Off - 1 121.54 ADD TO CART
Part Image P10113548 Low Water Cut Off PC Board - 1 416.12 ADD TO CART
Part Image P10113398 Test / Reset Switch - 1 114.33 ADD TO CART
Part Image P10024338 Blanket Return Header Refractory - 1 142.14 ADD TO CART
Part Image P10024366 Return Header Cover - 1 122.57 ADD TO CART
P10024286 Plenum Assembly Complete - 1 2,689.33 ADD TO CART
P10113708 High Tension Wire - 1 505.73 ADD TO CART
P10025986 Control Box Complete - 1 2,235.10 ADD TO CART
P10151548 Transformer 120/24 100 VA - 1 136.99 ADD TO CART
P10113674 Terminal Block Ground Lug - 1 143.17 ADD TO CART
P10025988 Air Shutter Assembly - 1 464.53 ADD TO CART
P10024310 Cap Intake Vent - 1 140.08 ADD TO CART
P10025242 Bleed Line Assembly - 1 207.03 ADD TO CART
P10025244 Vent Line Assembly - 1 129.78 ADD TO CART
P10125126 Manifold-Gas Injector Nat Upper - 1 1,850.91 ADD TO CART
P10125130 Manifold-Gas Injector Nat Lower - 1 2,267.03 ADD TO CART
P10025246 Manifold-Gas Injector Pro Lower - 1 1,980.69 ADD TO CART
P10122784 Regulator Gas 1" Nat Top - 1 390.37 ADD TO CART
P10113656 Gas Pressure Switch - 1 286.34 ADD TO CART
P10025990 Heat Exchange Assy. Cupro-Nickel (Bronze Header) (Includes 18-S) - 1 26,699.66 ADD TO CART
P10025994 Heat Exchange Assy. Copper (Bronze Header) (Includes 18-S) - 1 24,531.51 ADD TO CART
P10025996 Inlet/Outlet Header Bronze - 1 7,232.66 ADD TO CART
P10113572 In Line Fuse Holder (Not Shown) - 1 163.77 ADD TO CART
P10119888 Fuse 15 amp (Not Shown) - 1 272.95 ADD TO CART
P10024296 Guide PC Card - 1 26.78 ADD TO CART
P10113586 T & P Gauge 0-75 PSI - 1 217.33 ADD TO CART
P10113588 T & P Gauge 0-200 PSI - 1 289.43 ADD TO CART
P10126966 PRV 30 PSI - 1 1,121.67 ADD TO CART
P10122758 PRV 45 PSI - 1 726.15 ADD TO CART
P10113844 Touch up Paint (Green) - 1 70.04 ADD TO CART
P10113846 Touch up Paint (Dark Gray) - 1 70.04 ADD TO CART
P10133382 Pump -Circulating - Bronze (Soft Water 1501/Hard Water 1001) - 1 5,398.23 ADD TO CART
P10133742 Pump -Circulating - Bronze (Medium Water or Hard Water) - 1 6,710.45 ADD TO CART
P10024484 Pump -Circulating - CI (Soft Water 1501 or Hard Water 1001) - 1 3,274.37 ADD TO CART
P10133724 Pump -Circulating- CI (Medium Water or Hard Water) - 1 12,385.75 ADD TO CART
P10026002 Jacket Top - 1 129.78 ADD TO CART
P10024350 Flue Collector Front (No opening) - 1 1,266.90 ADD TO CART
P10024358 Flue Collector Rear (opening) - 1 1,911.68 ADD TO CART
P10026004 Heat Transfer Supports - 1 152.44 ADD TO CART
P10026006 Upper Cabinet Supports - 1 85.49 ADD TO CART
P10026012 Vertical Cabinet Supports - 1 190.55 ADD TO CART
P10026014 Jacket Upper Front Panel - 1 101.97 ADD TO CART
P10026020 Jacket Lower Front Panel - 1 135.96 ADD TO CART
P10026022 Jacket Upper Side Panel - 1 147.29 ADD TO CART
P10026028 Jacket Lower Side Panel - 1 229.69 ADD TO CART
P10026030 Jacket Upper Right Side Panel Connection Optional - 1 147.29 ADD TO CART
P10026036 Jacket Lower Right Side Panel Connection Optional - 1 173.04 ADD TO CART
P10026038 Jacket Upper Rear Panel - 1 149.35 ADD TO CART
P10026044 Jacket Lower Rear Panel - 1 135.96 ADD TO CART
P10026046 Jacket Upper Rear Panel Connection Optional - 1 135.96 ADD TO CART
P10026048 Base Assembly - 1 1,088.71 ADD TO CART
P10024446 Leg Bracket ( 4 pcs per boiler) - 1 398.61 ADD TO CART
P10119840 Base Reflector Panel - 1 93.73 ADD TO CART
P10024448 Flue Exhaust Flange Assembly - 1 115.36 ADD TO CART
P10024456 Flue Exhaust Cover - 1 147.29 ADD TO CART
P10026050 Control Box Assy - 1 233.81 ADD TO CART
P10026052 Control Box Cover - 1 124.63 ADD TO CART
P10026054 Power/Pump Switch Mounting Panel - 1 96.82 ADD TO CART
P10026000 Control Box Inner Panel - 1 33.99 ADD TO CART
P10024308 Bracket Pressure Switch MTG - 1 53.56 ADD TO CART
P10024320 Valve Pilot Mounting Bracket (Not shown) - 1 55.62 ADD TO CART
P10024458 Intake Air Cover Panel - 1 53.56 ADD TO CART
