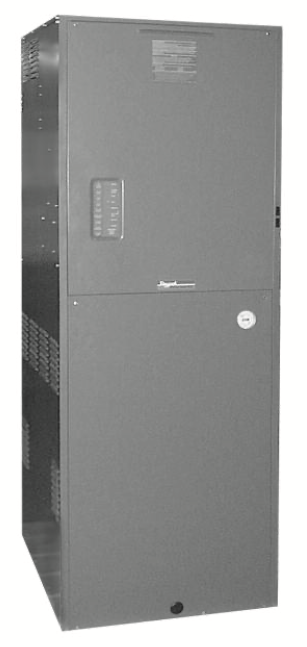

Parts for Raypak, Inc. WH3-1001:

ADB, Water Heater, 2-Stage, 1001

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


107 Parts

Component Description Serial Qty Price
Part Image P10119880 Ignitor-Spark Rod - 1.000 379.04 ADD TO CART
Part Image P10119882 Pilot Burner - 1.000 55.62 ADD TO CART
Part Image P10119892 Manual Reset High Limit 200 - 1.000 503.67 ADD TO CART
Part Image P10126962 Remote Aquastat (Tankstat) 2-Stage B-3 - 1.000 718.94 ADD TO CART
Part Image P10122740 Flow Switch - 1.000 357.41 ADD TO CART
Part Image P10113544 Printed Circuit Board Central Point Wiring - 1.000 1,030.00 ADD TO CART
Part Image P10000038 Printed Circuit Board U2 - 1.000 488.22 ADD TO CART
Part Image P10113550 Switch Pressure Vent Normally Closed - 1.000 197.76 ADD TO CART
Part Image P10113552 Switch Pressure Air Normally Open - 1.000 74.16 ADD TO CART
Part Image P10113434 Thermostat Manual Reset - 1.000 63.86 ADD TO CART
Part Image P10119884 Relay DPST 24 VAC - 1.000 75.19 ADD TO CART
Part Image P10113678 Time Delay Contactor - 1.000 147.29 ADD TO CART
Part Image P10113546 Ignition Control IID/PRV 75 PSI - 1.000 584.01 ADD TO CART
Part Image P10113500 Switch-Rocker SPST 16A - 1.000 41.20 ADD TO CART
Part Image P10119868 Contactor Pump 120V Coil - 1.000 127.72 ADD TO CART
Part Image P10125090 Auto On/Off Valve 1" (V-88) - 1.000 555.17 ADD TO CART
Part Image P10126060 Auto On/Off Valve 1-1/2" (V-88) - 1.000 703.49 ADD TO CART
Part Image P10113690 Orifice Pilot Nat - 1.000 17.51 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure - 1.000 292.52 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" - 1.000 146.26 ADD TO CART
Part Image P10126076 Valve Gas Manual A 1-1/2" - 1.000 292.52 ADD TO CART
Part Image P10113562 Valve Gas Manual B - 1.000 76.22 ADD TO CART
Part Image P10113564 Valve Pilot Gas Nat - 1.000 164.80 ADD TO CART
Part Image P10119830 Switch High Gas Pressure (optional) Not Shown - 1.000 297.01 ADD TO CART
Part Image P10131994 Return Header Bronze - 1.000 4,640.15 ADD TO CART
Part Image P10025998 Studbolt - 1.000 130.35 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1.000 86.52 ADD TO CART
Part Image P10113570 Well-Bulb Sensor 1/2"x 3-5/16" - 1.000 48.41 ADD TO CART
Part Image P10113452 Drain Valve - 1.000 101.97 ADD TO CART
Part Image P10119784 Flow Swich Paddle - 1.000 132.87 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1.000 70.04 ADD TO CART
Part Image P10113578 PRV 60 PSI - 1.000 189.10 ADD TO CART
Part Image P10024330 PRV 75 PSI - 1.000 160.68 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1.000 136.99 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1.000 139.05 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1.000 167.89 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1.000 117.42 ADD TO CART
Part Image P10113582 Remote Sensor for Low Water Cut-Off - 1.000 121.54 ADD TO CART
Part Image P10113548 Low Water Cut Off PC Board - 1.000 416.12 ADD TO CART
Part Image P10113398 Test / Reset Switch - 1.000 114.33 ADD TO CART
Part Image P10024338 Blanket Return Header Refractory - 1.000 136.99 ADD TO CART
Part Image P10024366 Return Header Cover - 1.000 119.48 ADD TO CART
P10129082 Burner / Pilot Assembly IID - 1.000 1,715.98 ADD TO CART
P10025798 Plenum Assembly Complete - 1.000 2,071.33 ADD TO CART
P10113708 High Tension Wire - 1.000 46.35 ADD TO CART
P10119806 Remote Aquastat (Tankstat) 2-Stage B-9 - 1.000 452.17 ADD TO CART
P10157250 Controller 2-Stage B-11 Digital - 1.000 6,258.36 ADD TO CART
P10025986 Control Box Complete - 1.000 1,838.55 ADD TO CART
P10151548 Transformer 120/24 100 VA - 1.000 192.61 ADD TO CART
P10113674 Terminal Block Ground Lug - 1.000 39.14 ADD TO CART
P10025240 Air Shutter Assembly - 1.000 599.46 ADD TO CART
P10024310 Cap Intake Vent - 1.000 63.86 ADD TO CART
P10025242 Bleed Line Assembly - 1.000 169.95 ADD TO CART
P10025244 Vent Line Assembly - 1.000 107.12 ADD TO CART
P10125126 Manifold-Gas Injector Nat Upper - 1.000 1,584.14 ADD TO CART
P10122744 Manifold-Gas Injector Pro Upper - 1.000 1,584.14 ADD TO CART
P10025806 Manifold-Gas Injector Nat Lower - 1.000 1,442.00 ADD TO CART
P10025810 Manifold-Gas Injector Pro Lower - 1.000 1,528.52 ADD TO CART
P10113556 Orifice Pilot Pro - 1.000 11.33 ADD TO CART
P10122784 Regulator Gas 1" Nat Top - 1.000 305.91 ADD TO CART
P10122666 Regulator Gas 1" Pro - 1.000 261.62 ADD TO CART
P10113566 Valve Pilot Gas Pro - 1.000 325.48 ADD TO CART
P10113656 Gas Pressure Switch - 1.000 223.51 ADD TO CART
P10134628 Heat Exchange Assy. Cupro-Nickel (Bronze Header) (Includes 18-S) - 1.000 15,437.64 ADD TO CART
P10134852 Heat Exchange Assy. Copper (Bronze Header) (Includes 18-S) - 1.000 13,910.15 ADD TO CART
P10025996 Inlet/Outlet Header Bronze - 1.000 7,232.66 ADD TO CART
P10113572 In Line Fuse Holder (Not Shown) - 1.000 133.90 ADD TO CART
P10119888 Fuse 15 amp (Not Shown) - 1.000 195.70 ADD TO CART
P10024296 Guide PC Card - 1.000 21.63 ADD TO CART
P10113586 T & P Gauge 0-75 PSI - 1.000 177.16 ADD TO CART
P10113588 T & P Gauge 0-200 PSI - 1.000 101.97 ADD TO CART
P10126966 PRV 30 PSI - 1.000 386.25 ADD TO CART
P10024328 PRV 45 PSI - 1.000 172.01 ADD TO CART
P10113844 Touch up Paint (Green) - 1.000 56.65 ADD TO CART
P10113844 P10113846 Touch up Paint (Dark Gray) - 1.000 70.04 ADD TO CART
P10024332 Pump -Circulating - Bronze (Soft Water) - 1.000 2,632.68 ADD TO CART
P10133382 Pump -Circulating - Bronze (Soft Water 1501/Hard Water 1001) - 1.000 4,231.24 ADD TO CART
P10133370 Pump -Circulating - Bronze (Medium Water) - 1.000 3,636.93 ADD TO CART
P10024336 Pump -Circulating - CI (Soft Water) - 1.000 2,103.26 ADD TO CART
P10133342 Pump -Circulating- CI (Medium Water) - 1.000 2,374.15 ADD TO CART
P10026002 Jacket Top - 1.000 110.21 ADD TO CART
P10024348 Flue Collector Front (No opening) - 1.000 867.26 ADD TO CART
P10025818 Flue Collector Rear (opening) - 1.000 546.93 ADD TO CART
P10026004 Heat Transfer Supports - 1.000 129.78 ADD TO CART
P10026006 Upper Cabinet Supports - 1.000 73.13 ADD TO CART
P10026010 Vertical Cabinet Supports - 1.000 160.68 ADD TO CART
P10026014 Jacket Upper Front Panel - 1.000 86.52 ADD TO CART
P10026018 Jacket Lower Front Panel - 1.000 107.12 ADD TO CART
P10026022 Jacket Upper Side Panel - 1.000 124.63 ADD TO CART
P10026026 Jacket Lower Side Panel - 1.000 168.92 ADD TO CART
P10026030 Jacket Upper Right Side Panel Connection Optional - 1.000 124.63 ADD TO CART
P10026034 Jacket Lower Right Side Panel Connection Optional - 1.000 124.63 ADD TO CART
P10026038 Jacket Upper Rear Panel - 1.000 126.69 ADD TO CART
P10026042 Jacket Lower Rear Panel - 1.000 107.12 ADD TO CART
P10026046 Jacket Upper Rear Panel Connection Optional - 1.000 116.39 ADD TO CART
P10026048 Base Assembly - 1.000 551.05 ADD TO CART
P10024446 Leg Bracket ( 4 pcs per boiler) - 1.000 326.51 ADD TO CART
P10119840 Base Reflector Panel - 1.000 71.07 ADD TO CART
P10025846 Flue Exhaust Flange Assembly - 1.000 94.76 ADD TO CART
P10025850 Flue Exhaust Cover - 1.000 116.39 ADD TO CART
P10026050 Control Box Assy - 1.000 199.82 ADD TO CART
P10026052 Control Box Cover - 1.000 107.12 ADD TO CART
P10026054 Power/Pump Switch Mounting Panel - 1.000 82.40 ADD TO CART
P10026000 Control Box Inner Panel - 1.000 27.81 ADD TO CART
P10024308 Bracket Pressure Switch MTG - 1.000 45.32 ADD TO CART
P10024320 Valve Pilot Mounting Bracket (Not shown) - 1.000 44.29 ADD TO CART
P10024458 Intake Air Cover Panel - 1.000 45.32 ADD TO CART
