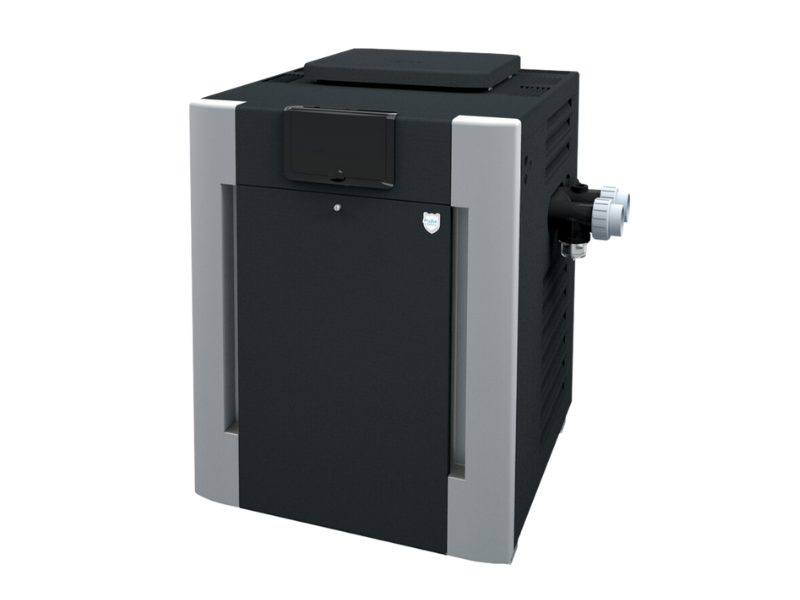

Parts for Raypak, Inc. P-R406A-MP-C:
Digital, Pool/Spa Heater Polymer Headers, Raypak Designation w/built-in stackless top, 406A, Millivolt Pilot, Propane, Copper Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
109 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10026786 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 416.14 | ADD TO CART |
|
P10003460 | Burner | - | 27.000 | $ 22.66 | ADD TO CART |
|
P10031574 | Burner Orifice Pro #57* (0-1999 ft elevation) | - | 27.000 | $ 20.63 | ADD TO CART |
|
P10031596 | Burner Orifice Pro #59* (3000-4999 ft elevation) | - | 27.000 | $ 20.63 | ADD TO CART |
|
P10031598 | Burner Orifice Pro #60* (5000-6999 ft elevation) | - | 27.000 | $ 20.63 | ADD TO CART |
|
P10026794 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 889.60 | ADD TO CART |
|
P10000032 | High Limit Auto Reset 135°F Deg Surface Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135°F (Auto Gas Shut-Off) Red Epoxy prior to 12/2019 | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140°F Black Epoxy prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10120082 | Fuse 5 AMP | - | 1.000 | $ 35.54 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10122678 | Combination Valve Pro. MV | - | 1.000 | $ 568.61 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete - Units manufactured prior to 10/2019 | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10132134 | Tube Bundle Copper | - | 1.000 | $ 1,945.42 | ADD TO CART |
|
P10026546 | Baffle (Copper Heat Exchanger) | - | 1.000 | $ 286.60 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 36.69 | ADD TO CART |
|
P10113464 | O-Ring Gasket (2) | - | 1.000 | $ 40.13 | ADD TO CART |
|
P10113488 | Sensor Well Millivolt | - | 1.000 | $ 73.37 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 103.18 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 60.76 | ADD TO CART |
|
P10113472 | Bypass Dam/Shaft | - | 1.000 | $ 74.52 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10113478 | 2" CPVC Connector & Nut (2) | - | 2.000 | $ 94.01 | ADD TO CART |
|
P10113480 | O-Ring (2) | - | 2.000 | $ 17.20 | ADD TO CART |
|
P10113490 | Inlet/Outlet Header Baffle w/Header Dam | - | 1.000 | $ 97.45 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Water Pressure Switch Adj. | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113726 | Thermostat Knob | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10113508 | Knobstop | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10000084 | Wire/Harness Millivolt | - | 1.000 | $ 174.26 | ADD TO CART |
|
P10113718 | Control Bezel MV (Includes Dial Decal) | - | 1.000 | $ 196.03 | ADD TO CART |
|
P10000056 | Dial Decal MV | - | 1.000 | $ 34.39 | ADD TO CART |
|
P10113716 | Control Bezel Cover | - | 1.000 | $ 67.64 | ADD TO CART |
|
P10113750 | Gasket Insulation (Swaybrace & Jacket Top) | - | 1.000 | $ 127.25 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 414.06 | ADD TO CART |
|
P10000058 | Flow Switch Paddle | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10029378 | T & P Gauge | - | 1.000 | $ 157.05 | ADD TO CART |
|
P10113798 | Pilot Pro. MV | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10119752 | Pilot Orifice Pro. MV | - | 1.000 | $ 119.22 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 114.64 | ADD TO CART |
|
P10000078 | Pilot MTG Bracket MV | - | 1.000 | $ 55.02 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10000076 | Pilot Shield | - | 1.000 | $ 48.15 | ADD TO CART |
|
P10129086 | Refractory Common Lt & Rt | - | 1.000 | $ 356.52 | ADD TO CART |
|
P10130088 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 397.80 | ADD TO CART |
|
P10122802 | Refractory Retainer Kit | - | 1.000 | $ 161.64 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10210305 | Poolstat Cover/Lock | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10153189 | Outdoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 459.38 | ADD TO CART |
|
P10129094 | Stack Adapter | - | 1.000 | $ 283.16 | ADD TO CART |
|
P10026874 | Outer Stack Adapter | - | 1.000 | $ 122.66 | ADD TO CART |
| P21138065 | Burner Tray w/Burners Pro #57 Orifice(sea level) | - | 1.000 | $ 668.35 | ADD TO CART | |
| P10026768 | Burner Tray w/Gas Valve Pro #57 Orifice Millivolt (sea level) | - | 1.000 | $ 1,347.01 | ADD TO CART | |
| P10031578 | Burner Orifice Pro #58* (2000-2999 ft elevation) | - | 27.000 | $ 4.12 | ADD TO CART | |
| P10031600 | Burner Orifice Pro #61* (7000-7999 ft elevation) | - | 27.000 | $ 20.63 | ADD TO CART | |
| P21038753 | High Limit Auto-Reset 150°F Surface Mount (ASME Only) | - | 1.000 | $ 106.62 | ADD TO CART | |
| P21036538 | Heat Exchanger Assy Copper – Units manufactured from 10/2019 | - | 1.000 | $ 3,898.87 | ADD TO CART | |
| P10131796 | Heat Exchanger Assy Copper – Units manufactured prior to 10/2019 | - | 1.000 | $ 2,854.13 | ADD TO CART | |
| P21039170 | Inlet/Outlet Header Complete - Units manufactured from 10/2019 | - | 1.000 | $ 779.55 | ADD TO CART | |
| P21038737 | Inlet/Outlet Header (Includes 6-HP) – Units manufactured from 10/2019 | - | 1.000 | $ 178.84 | ADD TO CART | |
| P10122834 | Inlet/Outlet Header (Includes 6-HP) – Units manufactured prior to 10/2019 | - | 1.000 | $ 728.21 | ADD TO CART | |
| P10029610 | Return Header (Includes 6-HP) | - | 1.000 | $ 218.96 | ADD TO CART | |
| P21036532 | ProTek Shield TM Assembly | - | 1.000 | $ 90.57 | ADD TO CART | |
| P10173419 | Bypass Spring – Units with Plastic Bypass Valve (Units manufactured from 3/5/17 to 12/19) | - | 1.000 | $ 102.03 | ADD TO CART | |
| P21038750 | Pressure Switch 1.75 PSI Complete Kit (Units manufactured from 12/2019 to 6/2020) | - | 1.000 | $ 147.89 | ADD TO CART | |
| P21039129 | PRV | - | 1.000 | $ 175.40 | ADD TO CART | |
| P10113844 | Touch-up Paint Green | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10113846 | Touch-up Paint Dark Gray | - | 1.000 | $ 0.00 | ADD TO CART |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10031954 | Touch-up Paint Warm Dark Gray | - | 1.000 | $ 56.65 | ADD TO CART | |
| P10210304 | Tie Down Bracket (Optional) | - | 1.000 | $ 25.75 | ADD TO CART | |
| P10030232 | Flanged Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 1,783.79 | ADD TO CART | |
| P10030234 | NPT Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 748.81 | ADD TO CART | |
| P10120090 | NPT Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10030226 | Flanged Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 286.60 | ADD TO CART | |
| P10029978 | PC Board Shield (Optional) | - | 1.000 | $ 102.03 | ADD TO CART | |
| P21038492 | Gas Line Finish Flange | - | 1.000 | $ 18.56 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10129800 | Jacket Top (Louvered) | - | 1.000 | $ 668.35 | ADD TO CART | |
| P10026580 | Flue Collector (Units with Polymer Header) | - | 1.000 | $ 206.35 | ADD TO CART | |
| P10028502 | Door Assy Raypak Cool Dark & Warm Dark Gray | - | 1.000 | $ 801.33 | ADD TO CART | |
| P10026736 | Door Assy Raypak Green | - | 1.000 | $ 467.72 | ADD TO CART | |
| P10028510 | Door Assy Rheem Cool Dark & Warm Dark Gray | - | 1.000 | $ 737.13 | ADD TO CART | |
| P10026744 | Door Assy Rheem Green | - | 1.000 | $ 427.61 | ADD TO CART | |
| P10028518 | Door Assy Ruud Warm Dark Gray (Units manufactured prior to 9/2012) | - | 1.000 | $ 255.65 | ADD TO CART | |
| P10030972 | Door Assy Jacuzzi | - | 1.000 | $ 334.75 | ADD TO CART | |
| P10125136 | Access Panel Set (3 Pcs Units with Polymer Header) | - | 1.000 | $ 335.89 | ADD TO CART | |
| P10026726 | Jacket Side Panel Right | - | 1.000 | $ 393.21 | ADD TO CART | |
| P10026728 | Jacket Side Panel Left | - | 1.000 | $ 420.72 | ADD TO CART | |
| P10026724 | Jacket Rear Panel (2 Pcs.) | - | 1.000 | $ 615.62 | ADD TO CART | |
| P10026678 | High Limit Cover prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART | |
| P10026680 | Base Heat Shield prior to 10/2019 | - | 1.000 | $ 98.59 | ADD TO CART | |
| P10026688 | Up Front Control Panel Green | - | 1.000 | $ 293.48 | ADD TO CART | |
| P10028556 | Up Front Control Panel Cool Dark Gray | - | 1.000 | $ 123.81 | ADD TO CART | |
| P10028564 | Up Front Control Panel Warm Dark Gray | - | 1.000 | $ 123.81 | ADD TO CART | |
| P10026698 | High Limit Shield | - | 1.000 | $ 61.90 | ADD TO CART | |
| P10026694 | Weather Shield | - | 1.000 | $ 185.72 | ADD TO CART | |
| P21138020 | Base Riser (Canada only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10151861 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 298.70 | ADD TO CART | |
| P10028548 | "Pagoda" Top Cool Dark Gray | - | 1.000 | $ 175.40 | ADD TO CART | |
| P10148408 | "Pagoda" Top Green | - | 1.000 | $ 109.18 | ADD TO CART | |
| P10119944 | Pro. to Nat. MV Pilot | - | 1.000 | $ 848.33 | ADD TO CART |
