Parts for Raypak, Inc. P-R335A-MP-C:

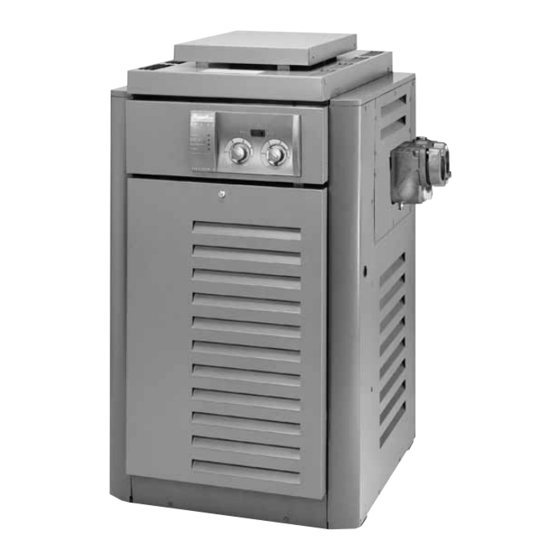

RP2100, Pool and Spa Heater Polymer Headers Atmospheric, Raypak, 335A, Millivolt Pilot, Propane, Copper Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
69 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10023862 | Burner Tray w/Burners (sea level) | - | 1.000 | $ 1,358.48 | ADD TO CART |
|
P10023908 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 132.87 | ADD TO CART |
|
P10003460 | Burner | - | 24.000 | $ 22.66 | ADD TO CART |
|
P10031574 | Burner Orifice Pro. #57 (Sea Level) | - | 24.000 | $ 20.63 | ADD TO CART |
|
P10023940 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 726.81 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135 Deg Surf Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135° (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140° - Black Epoxy | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10122678 | Combination Valve - Pro. MV | - | 1.000 | $ 568.61 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10125118 | Inlet/Outlet Header (Includes 6-H) | - | 1.000 | $ 834.57 | ADD TO CART |
|
P10125120 | Return Header (Includes 6-H) | - | 1.000 | $ 237.30 | ADD TO CART |
|
P10023934 | Baffle (8) | - | 1.000 | $ 132.98 | ADD TO CART |
|
P10113462 | Bolt Kit | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 36.69 | ADD TO CART |
|
P10113464 | O Ring Gasket (2) | - | 1.000 | $ 40.13 | ADD TO CART |
|
P10113488 | Sensor Well Millivolt | - | 1.000 | $ 73.37 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 103.18 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 60.76 | ADD TO CART |
|
P10113472 | Bypass Dam / Shaft | - | 1.000 | $ 74.52 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10143677 | Inlet/Outlet Header Dam | - | 1.000 | $ 105.25 | ADD TO CART |
|
P10113478 | 2 in. PVC Connector & Nut (2) | - | 1.000 | $ 94.01 | ADD TO CART |
|
P10113480 | O Ring (2) | - | 1.000 | $ 17.20 | ADD TO CART |
|
P10113490 | Stainless Steel Baffle | - | 1.000 | $ 97.45 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113500 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adjustment in Service Manual | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113508 | Knobstop(1) | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse (Atmospheric) | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 245.33 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10113362 | Wire/Harness Millivolt | - | 1.000 | $ 288.89 | ADD TO CART |
|
P10000010 | Control Panel MV | - | 1.000 | $ 272.84 | ADD TO CART |
|
P10113798 | Pilot Pro. MV | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10119752 | Pilot Orifice Pro. MV | - | 1.000 | $ 119.22 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 114.64 | ADD TO CART |
|
P10120178 | Pilot MTG Bracket MV | - | 1.000 | $ 12.36 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common (Left & Right) (Includes 4-R) | - | 1.000 | $ 535.36 | ADD TO CART |
|
P10023966 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 622.49 | ADD TO CART |
|
P10122712 | Refractory Retainer Kit (Includes 4-R) | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10119810 | Insulation Strips | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10125122 | Access Panel Set (3 Pcs.) (Units with Capron Header) | - | 1.000 | $ 85.98 | ADD TO CART |
|
P10119798 | Poolstat Cover/Lock | - | 1.000 | $ 146.26 | ADD TO CART |
|
P10126974 | Stack Adapter | - | 1.000 | $ 173.10 | ADD TO CART |
|
P10113372 | Pro. to Nat. MV Pilot | - | 1.000 | $ 711.91 | ADD TO CART |
| P10131580 | Burner Tray w/o Burner (sea level) | - | 1.000 | $ 776.11 | ADD TO CART | |
| P10023884 | Burner Tray w/Gas Valve Pro Millivolt | - | 1.000 | $ 1,199.13 | ADD TO CART | |
| P10024204 | Heat Exchanger Assembly Complete | - | 1.000 | $ 3,841.55 | ADD TO CART | |
| P10131842 | Tube Bundle | - | 1.000 | $ 2,350.10 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10027252 | Refractory (All) | - | 1.000 | $ 1,100.53 | ADD TO CART | |
| P10023976 | Jacket Top (Louvered) | - | 1.000 | $ 562.87 | ADD TO CART | |
| P10023992 | Door Assy. | - | 1.000 | $ 310.67 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 115.78 | ADD TO CART | |
| P10023956 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 314.11 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 108.91 | ADD TO CART | |
| P10125132 | Base Shield (Not Shown) | - | 1.000 | $ 252.35 | ADD TO CART | |
| P10026080 | Weather Shield | - | 1.000 | $ 95.15 | ADD TO CART | |
| P10153883 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 597.27 | ADD TO CART | |
| P21038133 | Pagoda Top | - | 1.000 | $ 193.25 | ADD TO CART |
