Parts for Raypak, Inc. P-R265A-EP-X:

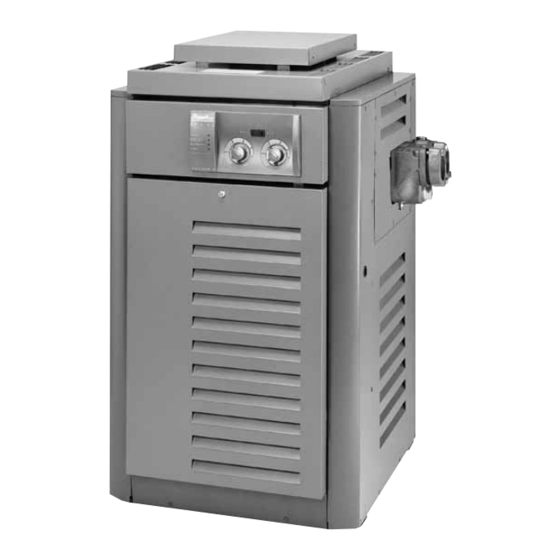

RP2100, Pool and Spa Heater Polymer Headers Atmospheric, Raypak, 265A, Electronic Pilot, Propane, Cupro Nickel Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
74 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10023906 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10003460 | Burner | - | 19.000 | $ 22.66 | ADD TO CART |
|
P10031574 | Burner Orifice Pro. #57 (Sea Level) | - | 19.000 | $ 20.63 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135 Deg Surf Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135° (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140° - Black Epoxy | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10156455 | P. C. Board Control IID Units | - | 1.000 | $ 613.60 | ADD TO CART |
|
P10113710 | P. C. Board Weather Shield (Not Shown) | - | 1.000 | $ 55.02 | ADD TO CART |
|
P10113460 | Temperature Sensor IID Units | - | 1.000 | $ 116.94 | ADD TO CART |
|
P10122684 | Combination Valve - Pro. IID | - | 1.000 | $ 498.69 | ADD TO CART |
|
P10126954 | Inlet/Outlet Header Complete | - | 1.000 | $ 937.30 | ADD TO CART |
|
P10125118 | Inlet/Outlet Header (Includes 6-H) | - | 1.000 | $ 834.57 | ADD TO CART |
|
P10125120 | Return Header (Includes 6-H) | - | 1.000 | $ 237.30 | ADD TO CART |
|
P10023932 | Baffle (8) | - | 1.000 | $ 231.58 | ADD TO CART |
|
P10113462 | Bolt Kit | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 36.69 | ADD TO CART |
|
P10113464 | O Ring Gasket (2) | - | 1.000 | $ 40.13 | ADD TO CART |
|
P10113466 | Sensor Adapter Digital Electronic | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10113468 | Bypass Kit | - | 1.000 | $ 103.18 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 60.76 | ADD TO CART |
|
P10113472 | Bypass Dam / Shaft | - | 1.000 | $ 74.52 | ADD TO CART |
|
P10113474 | Bypass Spring (All Sizes Included) | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10000028 | Unitherm Governor | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10113476 | Unitherm Governor Plug | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10143677 | Inlet/Outlet Header Dam | - | 1.000 | $ 109.28 | ADD TO CART |
|
P10113478 | 2 in. PVC Connector & Nut (2) | - | 1.000 | $ 94.01 | ADD TO CART |
|
P10113480 | O Ring (2) | - | 1.000 | $ 17.20 | ADD TO CART |
|
P10113490 | Stainless Steel Baffle | - | 1.000 | $ 97.45 | ADD TO CART |
|
P10113326 | Ignition Control IID Pro. | - | 1.000 | $ 327.87 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113500 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adjustment in Service Manual | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113508 | Knobstop(1) | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse (Atmospheric) | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 245.33 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10113482 | Wire/Harness IID | - | 1.000 | $ 530.78 | ADD TO CART |
|
P10113484 | Control Panel IID (Includes Switch Decal) | - | 1.000 | $ 223.51 | ADD TO CART |
|
P10113714 | Switch/Decal-Membrane | - | 1.000 | $ 152.44 | ADD TO CART |
|
P10113680 | Pilot IID Atmospheric (includes nat & pro orifice) built before 06/01/2000 | - | 1.000 | $ 248.77 | ADD TO CART |
|
P10119718 | Pilot IID Atmospheric (includes nat & pro orifice) built after 06/01/2000 | - | 1.000 | $ 131.84 | ADD TO CART |
|
P10119790 | Pilot Orifice Pro. IID .012 | - | 1.000 | $ 28.67 | ADD TO CART |
|
P10031556 | Pilot Mounting Bracket IID Atmospheric | - | 1.000 | $ 36.25 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10113294 | Hi Tension Wire IID | - | 1.000 | $ 83.69 | ADD TO CART |
|
P10147563 | Hi Tension Wire IID with Pilot Electrode | - | 1.000 | $ 144.40 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common (Left & Right) (Includes 4-R) | - | 1.000 | $ 535.36 | ADD TO CART |
|
P10119810 | Insulation Strips | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10023974 | Jacket Top (Louvered) | - | 1.000 | $ 506.71 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10125122 | Access Panel Set (3 Pcs.) (Units with Capron Header) | - | 1.000 | $ 85.98 | ADD TO CART |
|
P10119798 | Poolstat Cover/Lock | - | 1.000 | $ 146.26 | ADD TO CART |
| P10023860 | Burner Tray w/Burners (sea level) | - | 1.000 | $ 1,100.53 | ADD TO CART | |
| P10023868 | Burner Tray w/o Burner (sea level) | - | 1.000 | $ 723.37 | ADD TO CART | |
| P10023898 | Burner Tray w/Gas Valve Pro IID | - | 1.000 | $ 1,662.27 | ADD TO CART | |
| P10130076 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 606.44 | ADD TO CART | |
| P10131468 | Heat Exchanger Assembly Complete | - | 1.000 | $ 2,867.12 | ADD TO CART | |
| P10131748 | Tube Bundle Cupro Nickel (Upgrade) | - | 1.000 | $ 2,589.70 | ADD TO CART | |
| P10023964 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 470.02 | ADD TO CART | |
| P10027250 | Refractory (All) | - | 1.000 | $ 988.19 | ADD TO CART | |
| P10122710 | Refractory Retainer Kit (Includes 4-R) | - | 1.000 | $ 409.26 | ADD TO CART | |
| P10023990 | Door Assy. | - | 1.000 | $ 224.70 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 115.78 | ADD TO CART | |
| P10023954 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 287.74 | ADD TO CART | |
| P21037993 | Sub-Base for Combustible Flooring | - | 1.000 | $ 269.86 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 108.91 | ADD TO CART | |
| P10122786 | Base Shield (Not Shown) | - | 1.000 | $ 235.87 | ADD TO CART | |
| P10026078 | Weather Shield | - | 1.000 | $ 96.30 | ADD TO CART | |
| P10153750 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 611.03 | ADD TO CART | |
| P10128860 | Stack Adapter | - | 1.000 | $ 265.97 | ADD TO CART | |
| P10127898 | Pagoda Top | - | 1.000 | $ 222.40 | ADD TO CART |
