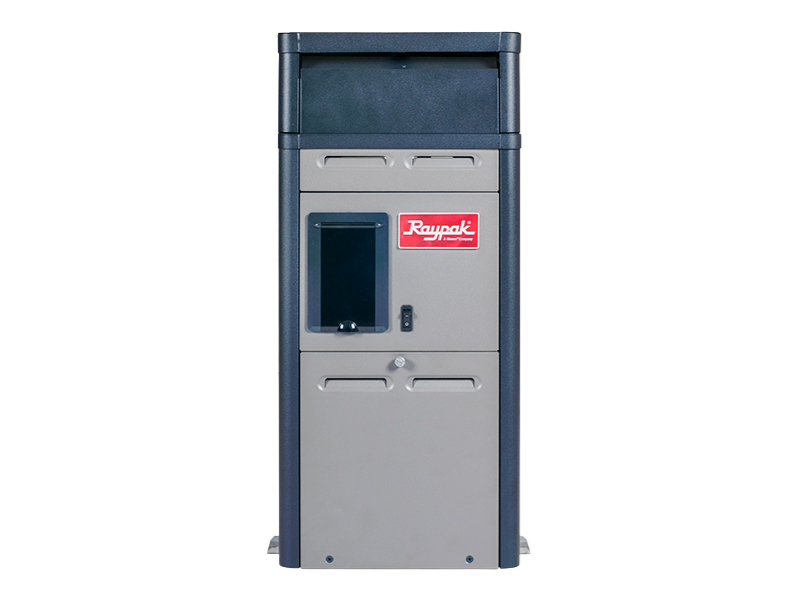

Parts for Raypak, Inc. P-R106A-AP-C:
Above Ground Pool/Spa Heater, Polymer, Raypak, 106A, Analog, Propane, Copper
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
64 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10029478 | Burner Tray w/Gas Valve (Sea Level)* Propane Gas | - | 1.000 | $ 781.84 | ADD TO CART |
|
P10029488 | Burner Orifice (Sea Level)* Propane .84mm | - | 13.000 | $ 169.66 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135° Surface Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10119954 | Potentiometer | - | 1.000 | $ 108.91 | ADD TO CART |
|
P10119956 | Temperature Sensor Analog (2 Wire) | - | 1.000 | $ 110.06 | ADD TO CART |
|
P10029496 | Combination Valve Pro. | - | 1.000 | $ 318.69 | ADD TO CART |
|
P10122806 | Inlet/Outlet Header Complete | - | 1.000 | $ 801.33 | ADD TO CART |
|
P10026892 | Inlet/Outlet Header (Includes 6-H) | - | 1.000 | $ 534.57 | ADD TO CART |
|
P10122808 | Return Header (Includes 6-H) | - | 1.000 | $ 181.13 | ADD TO CART |
|
P10130596 | Tube Bundle Copper ** | - | 1.000 | $ 849.47 | ADD TO CART |
|
P10113662 | Flange Nut Kit | - | 1.000 | $ 36.69 | ADD TO CART |
|
P10000090 | O Ring Gasket (2) | - | 1.000 | $ 48.15 | ADD TO CART |
|
P10113466 | Sensor Adapter | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10119962 | Bypass Kit | - | 1.000 | $ 98.59 | ADD TO CART |
|
P10113470 | Bypass Valve | - | 1.000 | $ 60.76 | ADD TO CART |
|
P10113472 | Bypass Dam / Shaft | - | 1.000 | $ 74.52 | ADD TO CART |
|
P10119964 | Bypass Spring | - | 1.000 | $ 141.01 | ADD TO CART |
|
P10000030 | Drain Plug | - | 1.000 | $ 34.62 | ADD TO CART |
|
P10141648 | Hose Adapter 1-1/2" MPT X 1-1/2" Hose (Optional) | - | 1.000 | $ 38.38 | ADD TO CART |
|
P10113478 | 2" CPVC Connector & Nut (2) | - | 1.000 | $ 94.01 | ADD TO CART |
|
P10113480 | O Ring Seal (2) | - | 1.000 | $ 17.20 | ADD TO CART |
|
P10119966 | Transformer 120/240/24V Analog | - | 1.000 | $ 134.13 | ADD TO CART |
|
P10113326 | Ignition Control Propane Gas (Analog) | - | 1.000 | $ 327.87 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adj in Service Manual | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113726 | Thermostat Knob | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10113508 | Knob Stop | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10113644 | PRV 125 PSI (Optional) | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10120166 | Deliming Kit (not shown) | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10000020 | Roll-Out Safety Switch | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10119718 | Pilot | - | 1.000 | $ 131.84 | ADD TO CART |
|
P10119790 | Pilot Orifice Pro. | - | 1.000 | $ 28.67 | ADD TO CART |
|
P10120162 | Pilot Mounting Bracket | - | 1.000 | $ 280.87 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
| P10029470 | Burner Tray (Sea Level)* Propane Gas | - | 1.000 | $ 1,146.39 | ADD TO CART | |
| P10119952 | Thermostat Control (Analog) | - | 1.000 | $ 490.65 | ADD TO CART | |
| P10029566 | PC Board | - | 1.000 | $ 365.70 | ADD TO CART | |
| P10130468 | Heat Exchange Assy Copper | - | 1.000 | $ 1,792.95 | ADD TO CART | |
| P10029500 | Inlet/Outlet Header Dam | - | 1.000 | $ 181.13 | ADD TO CART | |
| P10173449 | Control Box Analog (Includes 7-C) Propane Gas | - | 1.000 | $ 557.15 | ADD TO CART | |
| P10029550 | Dial Plate (Analog) | - | 1.000 | $ 17.20 | ADD TO CART | |
| P10120158 | Wire Harness Analog (not shown) | - | 1.000 | $ 114.64 | ADD TO CART | |
| P10119968 | Line Cord | - | 1.000 | $ 41.27 | ADD TO CART | |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10031954 | Touch-up Paint Warm Dark Gray | - | 1.000 | $ 56.65 | ADD TO CART | |
| P21038492 | Gas Line Finish Flange | - | 1.000 | $ 18.56 | ADD TO CART | |
| P10128864 | Refractory Kit | - | 1.000 | $ 434.49 | ADD TO CART | |
| P10029510 | Jacket Top | - | 1.000 | $ 295.77 | ADD TO CART | |
| P10029514 | Jacket Left | - | 1.000 | $ 197.18 | ADD TO CART | |
| P10029518 | Jacket Right | - | 1.000 | $ 197.18 | ADD TO CART | |
| P10029522 | Jacket Upper Front | - | 1.000 | $ 45.86 | ADD TO CART | |
| P10029524 | Jacket Lower Rear | - | 1.000 | $ 174.26 | ADD TO CART | |
| P10029526 | Flue Collector | - | 1.000 | $ 570.90 | ADD TO CART | |
| P10029530 | Door Panel Raypak | - | 1.000 | $ 193.74 | ADD TO CART | |
| P10029534 | Access Panels | - | 1.000 | $ 174.26 | ADD TO CART | |
| P10029536 | Control Panel Analog | - | 1.000 | $ 143.30 | ADD TO CART | |
| P10148923 | Control Cover Analog | - | 1.000 | $ 116.97 | ADD TO CART | |
| P10029540 | Stackless Top (Outdoor) | - | 1.000 | $ 818.52 | ADD TO CART | |
| P10029544 | Access Panel (Hot) | - | 1.000 | $ 60.76 | ADD TO CART | |
| P10149223 | Drafthood w/Adapter (Indoor) | - | 1.000 | $ 125.14 | ADD TO CART | |
| P10149844 | Outdoor Stack w/Adapter (Outdoor) | - | 1.000 | $ 219.21 | ADD TO CART | |
| P10029546 | Stack Adapter | - | 1.000 | $ 411.56 | ADD TO CART | |
| P10122836 | Propane to Natural | - | 1.000 | $ 1,125.76 | ADD TO CART |
