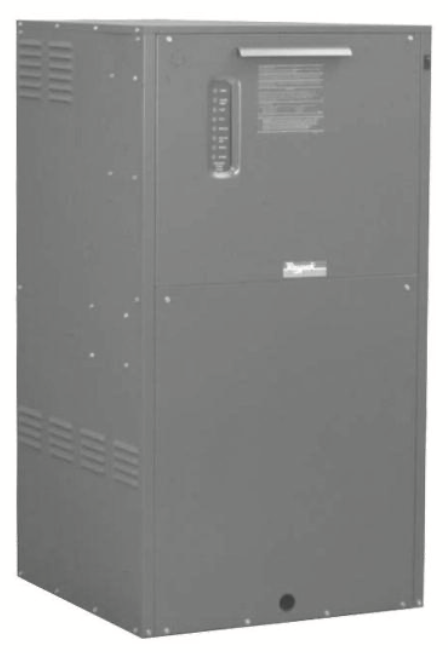

Parts for Raypak, Inc. H4-750:

ADB, Heating System On/Off, 750

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


111 Parts

Component Description Serial Qty Price
Part Image P10113540 Ignitor-Spark Rod - 1.000 143.17 ADD TO CART
Part Image P10113538 High Tension Wire - 1.000 111.24 ADD TO CART
Part Image P10119882 Pilot Burner (not shown) - 1.000 55.62 ADD TO CART
Part Image P10119818 Auto Reset High Limit - 1.000 353.29 ADD TO CART
Part Image P10122740 Flow Switch - 1.000 357.41 ADD TO CART
Part Image P10119820 Manual Reset High Limit - 1.000 388.31 ADD TO CART
Part Image P10113544 Printed Circuit Board - Central Point Wiring - 1.000 1,030.00 ADD TO CART
Part Image P10000038 Printed Circuit Board - U2 - 1.000 488.22 ADD TO CART
Part Image P10119822 Remote Aquastat- Storage tank (Tankstat) - 1.000 298.70 ADD TO CART
Part Image P10113550 Switch-Pressure Vent Normally Closed - 1.000 197.76 ADD TO CART
Part Image P10113552 Switch-Pressure Air Normally Open - 1.000 74.16 ADD TO CART
Part Image P10113434 Thermostat Manual Reset - 1.000 63.86 ADD TO CART
Part Image P10113450 Transformer 120/24 50 VA - 1.000 98.88 ADD TO CART
Part Image P10119884 Relay DPDT 24 VAC - 1.000 75.19 ADD TO CART
Part Image P10113546 Ignition Control IID - 1.000 584.01 ADD TO CART
Part Image P10113500 Switch-Rocker SPST 16A - 1.000 41.20 ADD TO CART
Part Image P10125090 Auto On/Off Valve (V-88) - 1.000 555.17 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure - 1.000 292.52 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" - 1.000 146.26 ADD TO CART
Part Image P10113562 Valve Gas Manual B - 1.000 76.22 ADD TO CART
Part Image P10113564 Valve Pilot Gas Nat - 1.000 164.80 ADD TO CART
Part Image P10119830 Switch High Gas Pressure (optional) Not Shown - 1.000 297.01 ADD TO CART
Part Image P10131994 Return Header Bronze - 1.000 4,640.15 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1.000 86.52 ADD TO CART
Part Image P10113570 Well-Bulb Sensor 1/2"x 3-5/16" - 1.000 48.41 ADD TO CART
Part Image P10113452 Drain Valve (Not Shown) - 1.000 101.97 ADD TO CART
Part Image P10119784 Flow Switch Paddle - 1.000 132.87 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1.000 70.04 ADD TO CART
Part Image P10113578 PRV 60 PSI - 1.000 189.10 ADD TO CART
Part Image P10024330 PRV 75 PSI - 1.000 160.68 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1.000 136.99 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1.000 139.05 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1.000 167.89 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1.000 117.42 ADD TO CART
Part Image P10122748 Generator-Spark C-2 - 1.000 489.25 ADD TO CART
Part Image P10113582 Remote Sensor for Low Water Cut-Off - 1.000 121.54 ADD TO CART
Part Image P10113548 Low Water Cut Off PC Board - 1.000 416.12 ADD TO CART
Part Image P10024338 Blanket Return Header Refractory - 1.000 136.99 ADD TO CART
Part Image P10024366 Return Header Cover - 1.000 119.48 ADD TO CART
P10127892 Burner / Pilot Assembly IID - 1.000 1,759.24 ADD TO CART
P10024268 Burner / Pilot Assembly C-2 - 1.000 1,610.92 ADD TO CART
P10024284 Plenum Assembly Complete - 1.000 1,806.62 ADD TO CART
P10130232 Burner Block - 1.000 674.65 ADD TO CART
P10113534 Burner Housing Refractory Block - 1.000 175.10 ADD TO CART
P10024276 Baffle-Gas/Air Mixing - 1.000 518.09 ADD TO CART
P10024290 Plenum End Panel - 1.000 127.72 ADD TO CART
P10024300 Control Box Cover - 1.000 209.09 ADD TO CART
P10024302 Control Box Complete - 1.000 1,157.72 ADD TO CART
P10024304 Terminal Block 8 space - 1.000 63.86 ADD TO CART
P10113674 Terminal Block w/Ground Tab (Not Shown) - 1.000 39.14 ADD TO CART
P10024306 Connector-Wire Bonding 14/6 - 1.000 9.27 ADD TO CART
P10024230 Air Shutter Assembly - 1.000 534.57 ADD TO CART
P10024310 Cap Intake Vent - 1.000 63.86 ADD TO CART
P10024312 Bleed Line Assembly - 1.000 94.76 ADD TO CART
P10024314 Vent Line Assembly - 1.000 46.35 ADD TO CART
P10125124 Manifold-Gas Injector Nat - 1.000 776.62 ADD TO CART
P10024318 Manifold-Gas Injector Pro - 1.000 776.62 ADD TO CART
P10113554 Orifice-Pilot Air - 1.000 18.54 ADD TO CART
P10113556 Orifice-Pilot Pro - 1.000 11.33 ADD TO CART
P10113558 Orifice-Pilot Nat - 1.000 11.33 ADD TO CART
P10119826 Regulator Gas 1" Nat - 1.000 307.97 ADD TO CART
P10119828 Regulator Gas 1" Pro - 1.000 313.12 ADD TO CART
P10113566 Valve Pilot Gas Pro - 1.000 325.48 ADD TO CART
P10134574 Heat Transfer Assy. Cupro Nickel (Includes 17-S) - 1.000 15,371.72 ADD TO CART
P10134624 Heat Transfer Assy. Copper (Includes 17-S) - 1.000 14,367.47 ADD TO CART
P10129478 Inlet/Outlet Header Bronze - 1.000 2,665.64 ADD TO CART
P10122738 Studbolt HX 500-1000 - 1.000 140.08 ADD TO CART
P10113572 In Line Fuse Holder (Not Shown) - 1.000 133.90 ADD TO CART
P10119888 Fuse 15 AMP (Not Shown) - 1.000 195.70 ADD TO CART
P10024296 Guide PC Card - 1.000 21.63 ADD TO CART
P10113586 T & P Gauge 0-90 PSI - 1.000 177.16 ADD TO CART
P10113588 T & P Gauge 0-200 PSI - 1.000 101.97 ADD TO CART
P10028872 T & P Gauge 0-230 PSI - 1.000 100.94 ADD TO CART
P10119836 PRV 30 PSI - 1.000 719.97 ADD TO CART
P10113590 PRV 45 PSI - 1.000 139.05 ADD TO CART
P10113844 Touch Up Paint (Green) - 1.000 56.65 ADD TO CART
P10113844 P10113846 Touch Up Paint (Dark Gray) - 1.000 70.04 ADD TO CART
P10024486 Amplifier-Flame Rectification C-2 - 1.000 690.10 ADD TO CART
P10122746 Control-Burner Flame Safeguard C-2 Ignition - 1.000 1,129.91 ADD TO CART
P10024488 Detector-UV Flame C-2 - 1.000 429.51 ADD TO CART
P10024490 Panel-Control Mounting - 1.000 51.50 ADD TO CART
P10132956 Pump -Circulating - Bronze (Soft Water) 2 in. - 1.000 2,512.17 ADD TO CART
P10024472 Pump -Circulating - Bronze (Medium Water) 2 in. - 1.000 3,151.80 ADD TO CART
P10024476 Pump -Circulating - Bronze (Hard Water) 2 in. - 1.000 4,108.67 ADD TO CART
P10024334 Pump -Circulating - CI (Soft Water) 2 in. - 1.000 2,000.26 ADD TO CART
P10024478 Pump -Circulating- CI (Medium Water) 2 in. - 1.000 1,936.40 ADD TO CART
P10024482 Pump -Circulating- CI (Hard Water) 2 in. - 1.000 2,460.67 ADD TO CART
P10024340 Jacket Top - 1.000 116.39 ADD TO CART
P10024346 Flue Collector Front (No opening) - 1.000 614.91 ADD TO CART
P10024354 Flue Collector Rear (Opening) - 1.000 1,083.56 ADD TO CART
P10024360 Support Channel - 1.000 195.70 ADD TO CART
P10024364 Control Box Cover - 1.000 109.18 ADD TO CART
P10024370 Door (Lower) - 1.000 400.67 ADD TO CART
P10024376 Jacket Upper Front Panel - 1.000 286.34 ADD TO CART
P10024384 Access Panel Flue (Lower) - 1.000 93.73 ADD TO CART
P10024392 Access Panel Flue (Upper) - 1.000 93.73 ADD TO CART
P10024398 Access Panel Flue (1 Pc.) (Blank-solid) - 1.000 118.45 ADD TO CART
P10024406 Jacket Side Right Panel - 1.000 227.63 ADD TO CART
P10024412 Jacket Side Right Panel Connection Option - 1.000 257.50 ADD TO CART
P10024420 Jacket Side Left Panel - 1.000 328.57 ADD TO CART
P10024428 Jacket Rear Panel - 1.000 237.93 ADD TO CART
P10024436 Jacket Rear Panel Connection Option - 1.000 231.75 ADD TO CART
P10024442 Base Assembly - 1.000 488.22 ADD TO CART
P10024446 Leg Bracket (4 pcs per boiler) - 1.000 326.51 ADD TO CART
P10119840 Base Reflector Panel - 1.000 71.07 ADD TO CART
P10024234 Flue Exhaust Flange Assembly - 1.000 132.87 ADD TO CART
P10024452 Flue Exhaust Cover - 1.000 85.49 ADD TO CART
P10024298 Control Box Assy - 1.000 199.82 ADD TO CART
P10024308 Bracket Pressure Switch MTG - 1.000 45.32 ADD TO CART
P10024320 Valve Pilot Mounting Bracket (Not shown) - 1.000 44.29 ADD TO CART
P10024458 Intake Air Cover Panel - 1.000 45.32 ADD TO CART
