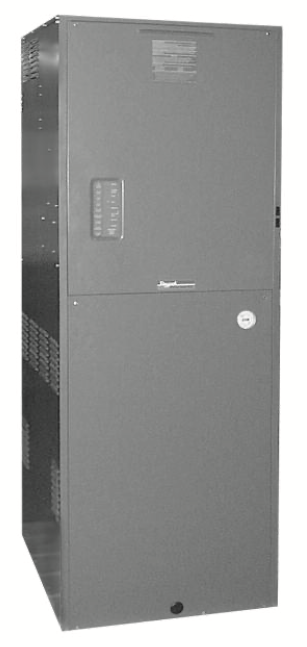

Parts for Raypak, Inc. H4-1000A:

ADB, Heating System On/Off, 1000A

Manufacturer: Raypak, Inc.


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


111 Parts

Component Description Serial Qty Price
Part Image P10119880 Ignitor-Spark Rod - 1 379.04 ADD TO CART
Part Image P10119882 Pilot Burner - 1 270.89 ADD TO CART
Part Image P10113538 High Tension Wire - 1 111.24 ADD TO CART
Part Image P10119818 Auto Reset High Limit - 1 353.29 ADD TO CART
Part Image P10122740 Flow Switch - 1 357.41 ADD TO CART
Part Image P10119820 Manual Reset High Limit - 1 388.31 ADD TO CART
Part Image P10113544 Printed Circuit Board - Central Point Wiring - 1 1,030.00 ADD TO CART
Part Image P10000038 Printed Circuit Board - U2 - 1 488.22 ADD TO CART
Part Image P10119822 Remote Aquastat- Storage tank (Tankstat) - 1 298.70 ADD TO CART
Part Image P10113550 Switch-Pressure Vent Normally Closed - 1 208.06 ADD TO CART
Part Image P10113552 Switch-Pressure Air Normally Open - 1 74.16 ADD TO CART
Part Image P10113434 Thermostat Manual Reset - 1 63.86 ADD TO CART
Part Image P10119884 Relay DPST 24 VAC - 1 83.19 ADD TO CART
Part Image P10113546 Ignition Control IID (All Sizes)/PRV 75 PSI (1500 Only) - 1 584.01 ADD TO CART
Part Image P10113678 Time Delay Contactor - 1 189.52 ADD TO CART
Part Image P10113500 Switch-Rocker SPST 16A - 1 41.20 ADD TO CART
Part Image P10125090 Auto On/Off Valve 1" (V-88) - 1 555.17 ADD TO CART
Part Image P10126060 Auto On/Off Valve 1-1/2" (V-88) - 1 703.49 ADD TO CART
Part Image P10113690 Orifice Pilot Nat - 1 22.66 ADD TO CART
Part Image P10113560 Switch Low Gas Pressure - 1 292.52 ADD TO CART
Part Image P10119832 Valve Gas Manual A 1" - 1 148.50 ADD TO CART
Part Image P10126076 Valve Gas Manual A 1-1/2" - 1 1,319.43 ADD TO CART
Part Image P10113562 Valve Gas Manual B - 1 76.22 ADD TO CART
Part Image P10113564 Valve Pilot Gas Nat - 1 210.12 ADD TO CART
Part Image P10119830 Switch High Gas Pressure (optional) Not Shown - 1 297.01 ADD TO CART
Part Image P10131994 Return Header Bronze - 1 4,640.15 ADD TO CART
Part Image P10113584 Header Gasket (20 PCS) - 1 86.52 ADD TO CART
Part Image P10113570 Well-Bulb Sensor 1/2"x 3-5/16" - 1 48.41 ADD TO CART
Part Image P10113452 Drain Valve - 1 101.97 ADD TO CART
Part Image P10119784 Flow Swich Paddle - 1 132.87 ADD TO CART
Part Image P10113512 Window Combustion Chamber - 1 70.04 ADD TO CART
Part Image P10113578 PRV 60 PSI - 1 189.10 ADD TO CART
Part Image P10024330 PRV 75 PSI - 1 160.68 ADD TO CART
Part Image P10119838 PRV 125 PSI - 1 136.99 ADD TO CART
Part Image P10113580 PRV 150 PSI - 1 135.96 ADD TO CART
Part Image P10119916 RTV Sealant 2.8 OZ - 1 167.89 ADD TO CART
Part Image P10113424 RTV Sealant 10 OZ - 1 145.23 ADD TO CART
Part Image P10122748 Generator-Spark C-2 - 1 626.24 ADD TO CART
Part Image P10113582 Remote Sensor for Low Water Cut-Off - 1 121.54 ADD TO CART
Part Image P10113548 Low Water Cut Off PC Board - 1 416.12 ADD TO CART
Part Image P10024338 Blanket Return Header Refractory - 1 142.14 ADD TO CART
Part Image P10024366 Return Header Cover - 1 122.57 ADD TO CART
P10129082 Burner / Pilot Assembly IID - 1 2,085.75 ADD TO CART
P10025798 Plenum Assembly Complete - 1 2,419.47 ADD TO CART
P10025802 Baffle-Gas/Air Mixing - 1 624.18 ADD TO CART
P10024294 Plenum End Panel - 1 184.37 ADD TO CART
P10024300 Control Box Cover - 1 245.14 ADD TO CART
P10025238 Control Box Complete - 1 1,465.69 ADD TO CART
P10151548 Transformer 120/24 100 VA - 1 136.99 ADD TO CART
P10113674 Terminal Block w/Ground Tab (Not Shown) - 1 143.17 ADD TO CART
P10024304 Terminal Block 3 pole - 1 239.99 ADD TO CART
P10024306 Connector-Wire Bonding 14/6 - 1 82.40 ADD TO CART
P10025240 Air Shutter Assembly - 1 599.46 ADD TO CART
P10024310 Cap Intake Vent - 1 140.08 ADD TO CART
P10025242 Bleed Line Assembly - 1 207.03 ADD TO CART
P10025244 Vent Line Assembly - 1 129.78 ADD TO CART
P10125126 Manifold-Gas Injector Nat Upper - 1 1,850.91 ADD TO CART
P10122744 Manifold-Gas Injector Pro Upper - 1 1,850.91 ADD TO CART
P10025806 Manifold-Gas Injector Nat Lower - 1 1,686.11 ADD TO CART
P10025810 Manifold-Gas Injector Pro Lower - 1 1,787.05 ADD TO CART
P10113556 Orifice Pilot Pro - 1 13.39 ADD TO CART
P10122784 Regulator Gas 1" Nat Top - 1 390.37 ADD TO CART
P10122666 Regulator Gas 1" Pro - 1 792.07 ADD TO CART
P10113566 Valve Pilot Gas Pro - 1 396.55 ADD TO CART
P10113656 Gas Pressure Switch - 1 286.34 ADD TO CART
P10025812 Heat Transfer Assy. Cupro-Nickle (Bronze Header) (Includes 17-S) - 1 18,489.53 ADD TO CART
P10134762 Heat Transfer Assy. Copper (Bronze Header) (Includes 17-S) - 1 16,240.01 ADD TO CART
P10024470 Inlet/Outlet Header Bronze - 1 2,863.40 ADD TO CART
P10122738 Studbolt - 1 170.98 ADD TO CART
P10113572 In Line Fuse Holder (Not Shown) - 1 163.77 ADD TO CART
P10119888 Fuse 15 amp (Not Shown) - 1 272.95 ADD TO CART
P10024296 Guide PC Card - 1 26.78 ADD TO CART
P10113586 T & P Guage 0-75 PSI - 1 217.33 ADD TO CART
P10113588 T & P Guage 0-200 PSI - 1 289.43 ADD TO CART
P10126966 PRV 30 PSI - 1 1,121.67 ADD TO CART
P10024328 PRV 45 PSI - 1 628.30 ADD TO CART
P10113844 Touch up Paint (Green) - 1 70.04 ADD TO CART
P10113846 Touch up Paint (Dark Gray) - 1 70.04 ADD TO CART
P10024486 Amplifier-Flame Rectification C-2 - 1 690.10 ADD TO CART
P10122746 Control-Burner Flame Safeguard C-2 Ignition - 1 3,902.67 ADD TO CART
P10024488 Detector-UV Flame C-2 - 1 523.24 ADD TO CART
P10024490 Panel-Contol Mounting - 1 63.86 ADD TO CART
P10024332 Pump -Circulating - Bronze (Soft Water) - 1 3,200.21 ADD TO CART
P10133382 Pump -Circulating - Bronze (Soft Water) - 1 5,398.23 ADD TO CART
P10133370 Pump -Circulating - Bronze (Medium Water) - 1 4,641.18 ADD TO CART
P10024336 Pump -Circulating - CI (Soft Water) - 1 2,556.46 ADD TO CART
P10024484 Pump -Circulating - CI (Soft Water and Hard Water) - 1 3,274.37 ADD TO CART
P10133342 Pump -Circulating- CI (Medium Water) - 1 7,107.00 ADD TO CART
P10024342 Jacket Top - 1 150.38 ADD TO CART
P10024348 Flue Collector Front (No opening) - 1 1,013.52 ADD TO CART
P10025818 Flue Collector Rear (opening) - 1 639.63 ADD TO CART
P10024362 Support Channel - 1 242.05 ADD TO CART
P10025822 Door (Lower) - 1 124.63 ADD TO CART
P10024380 Jacket Upper Front Panel - 1 371.83 ADD TO CART
P10024386 Access Panel Flue (Lower) - 1 93.73 ADD TO CART
P10024394 Access Panel Flue (Upper) - 1 93.73 ADD TO CART
P10024400 Access Panel Flue (1 Pc.) (blank-solid) - 1 118.45 ADD TO CART
P10025826 Jacket Right Side Panel - 1 478.95 ADD TO CART
P10025830 Jacket Right Side Panel Connection Option - 1 515.00 ADD TO CART
P10025834 Jacket Left Side Panel - 1 697.31 ADD TO CART
P10025838 Jacket Rear Panel - 1 369.77 ADD TO CART
P10025842 Jacket Rear Panel Connection Option - 1 387.28 ADD TO CART
P10024444 Base Assembly - 1 599.46 ADD TO CART
P10024446 Leg Bracket (4 pcs per boiler) - 1 398.61 ADD TO CART
P10119840 Base Reflector Panel - 1 93.73 ADD TO CART
P10025846 Flue Exhaust Flange Assembly - 1 117.42 ADD TO CART
P10025850 Flue Exhaust Cover - 1 142.14 ADD TO CART
P10024298 Control Box Assy - 1 326.51 ADD TO CART
P10024308 Bracket Pressure Switch MTG - 1 53.56 ADD TO CART
P10024320 Valve Pilot Mounting Bracket (Not shown) - 1 55.62 ADD TO CART
P10024458 Intake Air Cover Panel - 1 53.56 ADD TO CART
