Parts for Raypak, Inc. C-R405BL-EN-C:

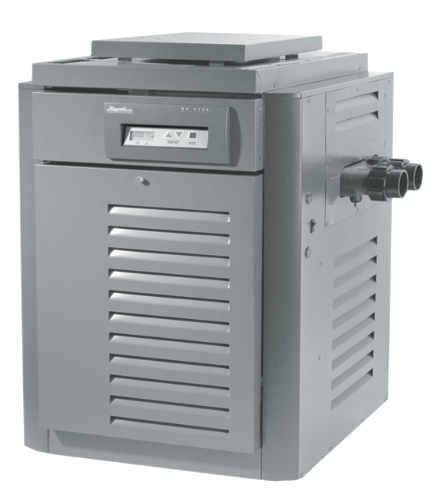

RP2100, Pool and Spa Heater Cast Iron Headers Low NOx, Raypak Designation, 405BL, Electronic Pilot, Natural Gas, Copper Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
73 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10146013 | Burner | - | 7.000 | $ 143.18 | ADD TO CART |
|
P10126972 | Blower | - | 1.000 | $ 574.34 | ADD TO CART |
|
P10000032 | Thermostat Auto Reset 135 Deg Surface Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135F (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140F - Black Epoxy | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10156455 | P. C. Board/Control IID Units | - | 1.000 | $ 613.60 | ADD TO CART |
|
P10000050 | Temperature Sensor IID Units | - | 1.000 | $ 102.03 | ADD TO CART |
|
P10119842 | Combination Valve - Gas On/Off -Nat (for Low Nox) | - | 1.000 | $ 522.76 | ADD TO CART |
|
P10131120 | Inlet/Outlet Header ASME CI (Complete) | - | 1.000 | $ 849.47 | ADD TO CART |
|
P10027346 | Inlet/Outlet Header ASME CI | - | 1.000 | $ 593.83 | ADD TO CART |
|
P10127890 | Return Header ASME CI | - | 1.000 | $ 284.30 | ADD TO CART |
|
P10132222 | Tube Bundle ASME | - | 1.000 | $ 2,246.92 | ADD TO CART |
|
P10023936 | Baffle | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10119860 | Stud Bolt Kit | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10000142 | Header Gasket (9) | - | 1.000 | $ 29.81 | ADD TO CART |
|
P10000102 | Unitherm Governor | - | 1.000 | $ 104.32 | ADD TO CART |
|
P10139073 | U.G. Retainer Spring | - | 1.000 | $ 2.25 | ADD TO CART |
|
P10143175 | Bypass Valve | - | 1.000 | $ 98.10 | ADD TO CART |
|
P10113870 | Bypass Spring | - | 1.000 | $ 5.15 | ADD TO CART |
|
P10137588 | Drain Valve | - | 1.000 | $ 38.77 | ADD TO CART |
|
P10119746 | Sensor Well | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10122670 | Inlet & Outlet Flange | - | 1.000 | $ 142.15 | ADD TO CART |
|
P10113768 | Flange Gasket 1 1/2 in. Connections | - | 1.000 | $ 68.78 | ADD TO CART |
|
P10113858 | Flange Gasket 2 in. Connections | - | 1.000 | $ 26.37 | ADD TO CART |
|
P10113360 | Rear Drain Plug & Cover | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10113688 | Relay Low Nox | - | 1.000 | $ 77.95 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Adjustment in Service Manual | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113726 | Thermostat Knob (1) | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10113508 | Knobstop (1) | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse (Atmospheric) | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10113434 | Roll-Out Switch (Low Nox) | - | 1.000 | $ 71.08 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 245.33 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10113720 | Wire/Harness IID | - | 1.000 | $ 271.75 | ADD TO CART |
|
P10113722 | Control Bezel IID (Includes Switch Decal) | - | 1.000 | $ 326.73 | ADD TO CART |
|
P10000048 | Switch/Decal-Membrane | - | 1.000 | $ 149.03 | ADD TO CART |
|
P10113716 | Control Bezel Cover | - | 1.000 | $ 67.64 | ADD TO CART |
|
P10000056 | Dial (Only) | - | 1.000 | $ 34.39 | ADD TO CART |
|
P10113654 | Pilot Nat. IID Low Nox | - | 1.000 | $ 223.55 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10147563 | Hi Tension Wire IID with Pilot Electrode | - | 1.000 | $ 144.40 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common Lt & Rt (Includes 4-R insulation strips) | - | 1.000 | $ 535.36 | ADD TO CART |
|
P10023968 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 569.76 | ADD TO CART |
|
P10027254 | Refractory (All) | - | 1.000 | $ 1,098.24 | ADD TO CART |
|
P10125108 | Refractory Retainer Kit (Includes 4-R insulation strips) | - | 1.000 | $ 412.70 | ADD TO CART |
|
P10119810 | Insulation Strips | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10210305 | Poolstat Cover/Lock | - | 1.000 | $ 87.13 | ADD TO CART |
| P10132656 | Burner Tray w/Burners (0-5000) | - | 1.000 | $ 1,578.99 | ADD TO CART | |
| P10025276 | Burner Tray w/o Burner (0-5000) | - | 1.000 | $ 943.48 | ADD TO CART | |
| P10025284 | Burner Hold Down Kit | - | 1.000 | $ 247.20 | ADD TO CART | |
| P10031678 | Burner Orifice Nat. #30 (0-5000) | - | 7.000 | $ 4.12 | ADD TO CART | |
| P10000116 | Burner Orifice Nat. #31 (above 5000 ft.) | - | 7.000 | $ 4.12 | ADD TO CART | |
| P10025470 | Air Shutter | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10024212 | Heat Exchange Assy. ASME CI (Complete) | - | 1.000 | $ 3,237.40 | ADD TO CART | |
| P10113640 | Pilot Mounting Bracket IID Low Nox | - | 1.000 | $ 115.78 | ADD TO CART | |
| P10023978 | Jacket Top (Louvered) | - | 1.000 | $ 596.12 | ADD TO CART | |
| P10023986 | Flue Collector (Units with Metal Header) | - | 1.000 | $ 628.22 | ADD TO CART | |
| P10152399 | Door Assy. | - | 1.000 | $ 176.54 | ADD TO CART | |
| P10152624 | Side Panel Right | - | 1.000 | $ 121.52 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 115.78 | ADD TO CART | |
| P10023958 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 298.06 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 108.91 | ADD TO CART | |
| P10125134 | Base Shield (Not Shown) | - | 1.000 | $ 261.62 | ADD TO CART | |
| P10026082 | Weather Shield | - | 1.000 | $ 105.47 | ADD TO CART | |
| P10154025 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 601.86 | ADD TO CART | |
| P10129084 | Stack Adapter | - | 1.000 | $ 104.32 | ADD TO CART | |
| P10173327 | Pagoda Top | - | 1.000 | $ 206.00 | ADD TO CART |
