Parts for Raypak, Inc. B-R405-MP-C:

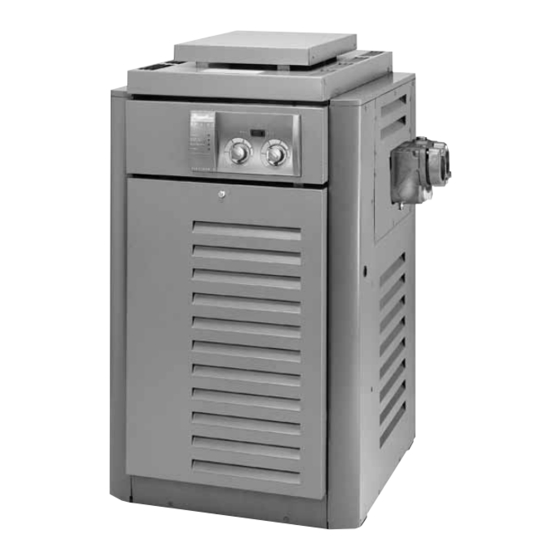

RP 2100, Pool and Spa Heater Bronze Headers, Raypak Designation, 405, Millivolt Pilot, Propane, Copper
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
62 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10023864 | Burner Tray w/Burners (Sea Level) | - | 1.000 | $ 1,720.73 | ADD TO CART |
|
P10023870 | Burner Tray w/o Burner (Sea Level) | - | 1.000 | $ 958.38 | ADD TO CART |
|
P10023886 | Burner Tray w/Gas Valve Pro Millivolt | - | 1.000 | $ 2,938.20 | ADD TO CART |
|
P10023910 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10003460 | Burner | - | 29.000 | $ 22.66 | ADD TO CART |
|
P10031574 | Burner Orifice Pro. #57 (Sea Level) | - | 29.000 | $ 20.63 | ADD TO CART |
|
P10113814 | AGS 135F (Auto Gas Shut-Off) - Red Epoxy | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140F - Black Epoxy | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10122678 | Combination Valve - Pro. MV | - | 1.000 | $ 568.61 | ADD TO CART |
|
P10130688 | Inlet/Outlet Header BR | - | 1.000 | $ 940.39 | ADD TO CART |
|
P10127876 | Return Header BR | - | 1.000 | $ 418.44 | ADD TO CART |
|
P10132096 | Tube Bundle | - | 1.000 | $ 1,945.42 | ADD TO CART |
|
P10023936 | Baffle Kit (8) | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10145418 | Bolt Kit | - | 1.000 | $ 50.29 | ADD TO CART |
|
P10000142 | Header Gasket (9) | - | 1.000 | $ 29.81 | ADD TO CART |
|
P10000102 | Unitherm Governor | - | 1.000 | $ 104.32 | ADD TO CART |
|
P10139073 | Unitherm Governor Retainer Spring | - | 1.000 | $ 2.25 | ADD TO CART |
|
P10143175 | Bypass Valve | - | 1.000 | $ 98.10 | ADD TO CART |
|
P10137588 | Drain Valve | - | 1.000 | $ 38.77 | ADD TO CART |
|
P10119746 | Sensor Well | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10122670 | Inlet & Outlet Flange | - | 1.000 | $ 142.15 | ADD TO CART |
|
P10113768 | Flange Gasket 1 1/2 in. Connections | - | 1.000 | $ 68.78 | ADD TO CART |
|
P10113858 | Flange Gasket 2 in. Connections | - | 1.000 | $ 26.37 | ADD TO CART |
|
P10113360 | Rear Drain Plug & Cover | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10113500 | Rocker Switch (MV Units) | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000104 | Pressure Switch | - | 1.000 | $ 117.25 | ADD TO CART |
|
P10113380 | Pressure Switch Tube Assembly | - | 1.000 | $ 132.98 | ADD TO CART |
|
P10113508 | Knobstop (1) | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10113760 | PRV 125 PSI (Optional) | - | 1.000 | $ 245.33 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10113362 | Wire/Harness Millivolt | - | 1.000 | $ 288.89 | ADD TO CART |
|
P10000010 | Control Panel Millivolt | - | 1.000 | $ 272.84 | ADD TO CART |
|
P10113382 | CPVC Adapter | - | 1.000 | $ 131.84 | ADD TO CART |
|
P10113798 | Pilot Pro. MV | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10119752 | Pilot Orifice Pro. MV | - | 1.000 | $ 119.22 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 114.64 | ADD TO CART |
|
P10120178 | Pilot MTG Bracket MV | - | 1.000 | $ 12.36 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10031562 | Pilot Shield | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10023960 | Refractory Common (Left & Right) | - | 1.000 | $ 535.36 | ADD TO CART |
|
P10023968 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 569.76 | ADD TO CART |
|
P10027254 | Refractory (All) | - | 1.000 | $ 1,098.24 | ADD TO CART |
|
P10125108 | Refractory Retainer Kit | - | 1.000 | $ 412.70 | ADD TO CART |
|
P10119798 | Poolstat Cover/Lock | - | 1.000 | $ 146.26 | ADD TO CART |
|
P10113372 | Pro. to Nat. MV Pilot | - | 1.000 | $ 711.91 | ADD TO CART |
| P10023942 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 905.65 | ADD TO CART | |
| P10023930 | Heat Exchanger Tube (1) | - | 1.000 | $ 215.27 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10023978 | Jacket Top (Louvered) | - | 1.000 | $ 596.12 | ADD TO CART | |
| P10023986 | Flue Collector | - | 1.000 | $ 628.22 | ADD TO CART | |
| P10023994 | Door Assy. | - | 1.000 | $ 325.57 | ADD TO CART | |
| P10119800 | Side Panel Cap | - | 1.000 | $ 115.78 | ADD TO CART | |
| P10023958 | Rear Panel Kit (2 Pcs.) | - | 1.000 | $ 298.06 | ADD TO CART | |
| P10023970 | High Limit Cover | - | 1.000 | $ 108.91 | ADD TO CART | |
| P10125134 | Base Shield (Not Shown) | - | 1.000 | $ 261.62 | ADD TO CART | |
| P10026082 | Weather Shield | - | 1.000 | $ 105.47 | ADD TO CART | |
| P10154025 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 601.86 | ADD TO CART | |
| P10129084 | Stack Adapter | - | 1.000 | $ 104.32 | ADD TO CART | |
| P10173327 | Pagoda Top | - | 1.000 | $ 206.00 | ADD TO CART |
