Parts for Raypak, Inc. B-R266A-MN-X:

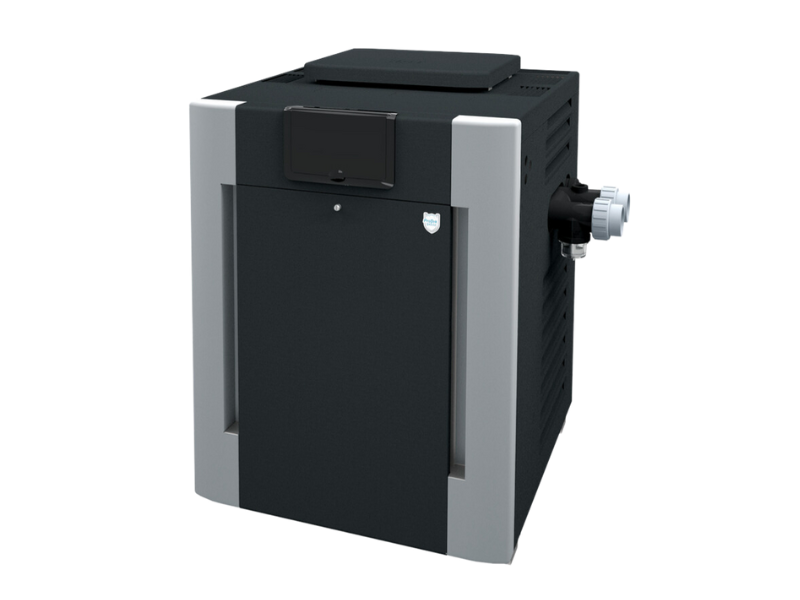

Digital, Pool/Spa Heater Premium Bronze Headers, Raypak Designation w/built-in stackless top, 266A, Millivolt Pilot, Natural Gas, Cupro Nickel Tubes
Manufacturer: Raypak, Inc.
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
119 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10130590 | Burner Tray w/Burners Nat #50 Orifice (sea level) | - | 1.000 | $ 1,168.18 | ADD TO CART |
|
P10003460 | Burner | - | 18.000 | $ 22.66 | ADD TO CART |
|
P10031568 | Burner Orifice Nat #50* (0-1999 ft elevation) | - | 18.000 | $ 20.63 | ADD TO CART |
|
P10120180 | Burner Orifice Nat #51* (2000-5999 ft elevation) | - | 18.000 | $ 20.63 | ADD TO CART |
|
P10031570 | Burner Orifice Nat #52* (6000-8999 ft elevation) | - | 18.000 | $ 20.63 | ADD TO CART |
|
P10000032 | High Limit Auto Reset 135°F Deg Surface Mount | - | 1.000 | $ 75.98 | ADD TO CART |
|
P10113814 | AGS 135°F (Auto Gas Shut-Off) Red Epoxy prior to 12/2019 | - | 1.000 | $ 63.06 | ADD TO CART |
|
P10113816 | High Limit 140°F Black Epoxy prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART |
|
P10120082 | Fuse 5 AMP | - | 1.000 | $ 35.54 | ADD TO CART |
|
P10000004 | Thermostat Control MV Units Mechanical | - | 1.000 | $ 222.40 | ADD TO CART |
|
P10122676 | Combination Valve Nat. MV | - | 1.000 | $ 562.87 | ADD TO CART |
|
P10131120 | Inlet/Outlet Header ASME Complete (Bronze) – Units manufactured prior to 12/2019 | - | 1.000 | $ 849.47 | ADD TO CART |
|
P10027346 | Inlet/Outlet Header ASME (Bronze) – Units manufactured prior to 12/2019 – Units manufactured prior to 12/2019 | - | 1.000 | $ 593.83 | ADD TO CART |
|
P10122670 | Inlet & Outlet Flange prior to 12/2019 (Bronze) | - | 1.000 | $ 142.15 | ADD TO CART |
|
P10113768 | Flange Gasket 1-1/2" Connections prior to 12/2019 | - | 1.000 | $ 68.78 | ADD TO CART |
|
P10113858 | Flange Gasket 2" Connections prior to 12/2019 | - | 1.000 | $ 26.37 | ADD TO CART |
|
P10127890 | Return Header ASME (Bronze) – Units manufactured prior to 12/2019 | - | 1.000 | $ 284.30 | ADD TO CART |
|
P10132052 | Tube Bundle Cupronickel ASME – Units manufactured prior to 12/2019 | - | 1.000 | $ 2,547.28 | ADD TO CART |
|
P10119860 | Stud Bolt Kit – Units manufactured prior to 12/2019 | - | 1.000 | $ 120.38 | ADD TO CART |
|
P10000142 | Header Gasket (9) | - | 1.000 | $ 29.81 | ADD TO CART |
|
P10000102 | Unitherm Governor | - | 1.000 | $ 104.32 | ADD TO CART |
|
P10120086 | Drain Valve | - | 1.000 | $ 35.02 | ADD TO CART |
|
P10119746 | Sensor Well | - | 1.000 | $ 128.40 | ADD TO CART |
|
P10031488 | Well Retaining Clip | - | 1.000 | $ 3.09 | ADD TO CART |
|
P10113360 | Rear Drain Plug & Cover | - | 1.000 | $ 53.88 | ADD TO CART |
|
P10113382 | Adapter CPVC 2" | - | 1.000 | $ 131.84 | ADD TO CART |
|
P10122736 | Transformer 120/240/24V | - | 1.000 | $ 135.27 | ADD TO CART |
|
P10113724 | Rocker Switch | - | 1.000 | $ 45.86 | ADD TO CART |
|
P10000034 | Pressure Switch 1.75 PSI | - | 1.000 | $ 88.27 | ADD TO CART |
|
P10113712 | Pressure Switch 11 PSI Special-See Water Pressure Switch Adj. | - | 1.000 | $ 84.83 | ADD TO CART |
|
P10113726 | Thermostat Knob | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10113508 | Knobstop | - | 1.000 | $ 58.46 | ADD TO CART |
|
P10000020 | Thermal Fuse | - | 1.000 | $ 50.44 | ADD TO CART |
|
P10120166 | Deliming Kit | - | 1.000 | $ 512.44 | ADD TO CART |
|
P10000084 | Wire/Harness Millivolt | - | 1.000 | $ 174.26 | ADD TO CART |
|
P10113718 | Control Bezel MV (Includes Dial Decal) | - | 1.000 | $ 196.03 | ADD TO CART |
|
P10000056 | Dial Decal MV | - | 1.000 | $ 34.39 | ADD TO CART |
|
P10113716 | Control Bezel Cover | - | 1.000 | $ 67.64 | ADD TO CART |
|
P10113750 | Gasket Insulation (Swaybrace & Jacket Top) | - | 1.000 | $ 127.25 | ADD TO CART |
|
P10122740 | Flow Switch | - | 1.000 | $ 414.06 | ADD TO CART |
|
P10000058 | Flow Switch Paddle | - | 1.000 | $ 175.40 | ADD TO CART |
|
P10029378 | T & P Gauge | - | 1.000 | $ 157.05 | ADD TO CART |
|
P10000122 | Pilot Nat. MV | - | 1.000 | $ 183.42 | ADD TO CART |
|
P10119750 | Pilot Orifice Nat. MV | - | 1.000 | $ 111.20 | ADD TO CART |
|
P10000118 | Pilot Generator MV | - | 1.000 | $ 114.64 | ADD TO CART |
|
P10000078 | Pilot MTG Bracket MV | - | 1.000 | $ 55.02 | ADD TO CART |
|
P10119782 | Pilot Tube | - | 1.000 | $ 29.49 | ADD TO CART |
|
P10000076 | Pilot Shield | - | 1.000 | $ 48.15 | ADD TO CART |
|
P10129086 | Refractory Common Lt & Rt | - | 1.000 | $ 356.52 | ADD TO CART |
|
P10129090 | Refractory Uncommon (Front & Rear) | - | 1.000 | $ 315.26 | ADD TO CART |
|
P10119940 | Refractory Retainer Kit | - | 1.000 | $ 157.05 | ADD TO CART |
|
P10113486 | Screw & Retainer | - | 1.000 | $ 100.88 | ADD TO CART |
|
P10210305 | Poolstat Cover/Lock | - | 1.000 | $ 87.13 | ADD TO CART |
|
P10151046 | Indoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 285.31 | ADD TO CART |
|
P10146473 | "Pagoda" Top Green | - | 1.000 | $ 78.89 | ADD TO CART |
|
P10113306 | Nat. to Pro. MV Pilot | - | 1.000 | $ 382.13 | ADD TO CART |
| P10026756 | Burner Tray w/Gas Valve Nat #50 Orifice Millivolt (sea level) | - | 1.000 | $ 2,585.12 | ADD TO CART | |
| P10026782 | Burner Spacer/Hold Down Kit | - | 1.000 | $ 124.96 | ADD TO CART | |
| P10031590 | Burner Orifice Nat #53* (9000 + ft elevation) | - | 18.000 | $ 20.63 | ADD TO CART | |
| P10026790 | Burner Tray w/o Manifold w/o burners | - | 1.000 | $ 584.66 | ADD TO CART | |
| P21038753 | High Limit Auto-Reset 150°F Surface Mount (ASME Only) | - | 1.000 | $ 106.62 | ADD TO CART | |
| P21039203 | Heat Exchanger Assy. Cupronickel ASME (Bronze) – Units manufactured from 12/2019 | - | 1.000 | $ 4,622.25 | ADD TO CART | |
| P10026714 | Heat Exchanger Assy. Cupronickel ASME (Bronze) – Units manufactured prior to 12/2019 | - | 1.000 | $ 4,709.37 | ADD TO CART | |
| P21043351 | Inlet/Outlet Header ASME Complete (Bronze) – Units manufactured from 7/2020 | - | 1.000 | $ 1,714.13 | ADD TO CART | |
| P21043353 | Inlet/Outlet Header ASME Complete (Bronze) – Units manufactured from 12/2019 | - | 1.000 | $ 1,372.23 | ADD TO CART | |
| P21138027 | Inlet/Outlet Header ASME (Bronze) – Units manufactured prior to 12/2019 – Units manufactured from 7/2020 | - | 1.000 | $ 784.13 | ADD TO CART | |
| P21039172 | Inlet/Outlet Header ASME (Bronze) – Units manufactured prior to 12/2019 – Units manufactured from 12/2019 | - | 1.000 | $ 826.54 | ADD TO CART | |
| P21039166 | Return Header ASME (Bronze) - Units manufactured from 7/2020 | - | 1.000 | $ 459.70 | ADD TO CART | |
| P21038739 | Return Header ASME (Bronze) - Units manufactured from 12/2019 | - | 1.000 | $ 403.53 | ADD TO CART | |
| P21039194 | Tube Bundle Cupronickel ASME – Units manufactured from 12/2019 | - | 1.000 | $ 2,547.28 | ADD TO CART | |
| P21036534 | Stud Bolt Kit – Units manufactured from 12/2019 | - | 1.000 | $ 91.71 | ADD TO CART | |
| P10120084 | U.G. Retainer Spring | - | 1.000 | $ 2.06 | ADD TO CART | |
| P10028430 | U.G. Plug | - | 1.000 | $ 130.69 | ADD TO CART | |
| P10173418 | Bypass Valve | - | 1.000 | $ 88.27 | ADD TO CART | |
| P10120088 | Bypass Spring – Units with Bronze Bypass Valve (Units manufactured prior to 3/5/17) | - | 1.000 | $ 50.44 | ADD TO CART | |
| P21038743 | Adapter ProTek Shield (Includes 27-HM) from end of Q3 2020 | - | 1.000 | $ 340.48 | ADD TO CART | |
| P21039110 | Nut ProTek Shield Adapter 2-Pcs from end of Q3 2020 | - | 1.000 | $ 67.64 | ADD TO CART | |
| P21038736 | U.G./Bypass Assembly (Units manufactured from 12/2019) | - | 1.000 | $ 300.76 | ADD TO CART | |
| P21039122 | ProTek Shield Assembly from end of Q3 2020 | - | 1.000 | $ 110.06 | ADD TO CART | |
| P10030392 | Bypass O-Ring (Units manufactured from 12/2019) | - | 1.000 | $ 51.59 | ADD TO CART | |
| P21038750 | Pressure Switch 1.75 PSI Complete Kit (Units manufactured from 12/2019 to 6/2020) | - | 1.000 | $ 147.89 | ADD TO CART | |
| P21039129 | PRV | - | 1.000 | $ 175.40 | ADD TO CART | |
| P10113844 | Touch-up Paint Green | - | 1.000 | $ 0.00 | ADD TO CART | |
|
P10113846 | Touch-up Paint Dark Gray | - | 1.000 | $ 0.00 | ADD TO CART |
| P10031952 | Touch-up Paint Cool Dark Gray | - | 1.000 | $ 70.04 | ADD TO CART | |
| P10031954 | Touch-up Paint Warm Dark Gray | - | 1.000 | $ 56.65 | ADD TO CART | |
| P10210304 | Tie Down Bracket (Optional) | - | 1.000 | $ 25.75 | ADD TO CART | |
| P10030232 | Flanged Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 1,783.79 | ADD TO CART | |
| P10030234 | NPT Connection (Not Shown) - Texas Code Option (ASME Only) Units manufactured prior to 12/2019 | - | 1.000 | $ 748.81 | ADD TO CART | |
| P10120090 | NPT Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 67.98 | ADD TO CART | |
| P10030226 | Flanged Connection - 2" CPVC Connector (Outlet Plumbing) | - | 1.000 | $ 286.60 | ADD TO CART | |
| P10029978 | PC Board Shield (Optional) | - | 1.000 | $ 102.03 | ADD TO CART | |
| P21038492 | Gas Line Finish Flange | - | 1.000 | $ 18.56 | ADD TO CART | |
| P10113770 | Lighter Tube (MV Units Only) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10026550 | Jacket Top (Louvered) | - | 1.000 | $ 641.98 | ADD TO CART | |
| P10026584 | Flue Collector (Units with Metal Header) | - | 1.000 | $ 201.77 | ADD TO CART | |
| P10028498 | Door Assy Raypak Cool Dark & Warm Dark Gray | - | 1.000 | $ 774.96 | ADD TO CART | |
| P10026732 | Door Assy Raypak Green | - | 1.000 | $ 776.11 | ADD TO CART | |
| P10028506 | Door Assy Rheem Cool Dark & Warm Dark Gray | - | 1.000 | $ 727.96 | ADD TO CART | |
| P10026740 | Door Assy Rheem Green | - | 1.000 | $ 435.63 | ADD TO CART | |
| P10028514 | Door Assy Ruud Warm Dark Gray (Units manufactured prior to 9/2012) | - | 1.000 | $ 340.48 | ADD TO CART | |
| P10030970 | Door Assy Jacuzzi | - | 1.000 | $ 276.04 | ADD TO CART | |
| P21038738 | Access Panel Set ASME (3 Pcs. for BR Header) from 12/2019 | - | 3.000 | $ 84.83 | ADD TO CART | |
| P10125138 | Access Panel Set ASME (3 Pcs. for CI Header) prior to 12/2019 | - | 3.000 | $ 332.45 | ADD TO CART | |
| P10026726 | Jacket Side Panel Right | - | 1.000 | $ 393.21 | ADD TO CART | |
| P10026728 | Jacket Side Panel Left | - | 1.000 | $ 420.72 | ADD TO CART | |
| P10026720 | Jacket Rear Panel (2 Pcs.) | - | 1.000 | $ 253.35 | ADD TO CART | |
| P10026678 | High Limit Cover prior to 12/2019 | - | 1.000 | $ 66.49 | ADD TO CART | |
| P10026680 | Base Heat Shield prior to 10/2019 | - | 1.000 | $ 98.59 | ADD TO CART | |
| P10026684 | Up Front Control Panel Green | - | 1.000 | $ 264.81 | ADD TO CART | |
| P10028552 | Up Front Control Panel Cool Dark Gray | - | 1.000 | $ 146.73 | ADD TO CART | |
| P10028560 | Up Front Control Panel Warm Dark Gray | - | 1.000 | $ 146.73 | ADD TO CART | |
| P10026698 | High Limit Shield | - | 1.000 | $ 61.90 | ADD TO CART | |
| P10026690 | Weather Shield | - | 1.000 | $ 178.84 | ADD TO CART | |
| P21138020 | Base Riser (Canada only) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10152453 | Outdoor Stack Kit (Includes inner adapter panel) | - | 1.000 | $ 397.58 | ADD TO CART | |
| P10126978 | Stack Adapter | - | 1.000 | $ 205.21 | ADD TO CART | |
| P10026870 | Outer Stack Adapter | - | 1.000 | $ 98.59 | ADD TO CART | |
| P10028544 | "Pagoda" Top Cool Dark Gray | - | 1.000 | $ 176.54 | ADD TO CART |
