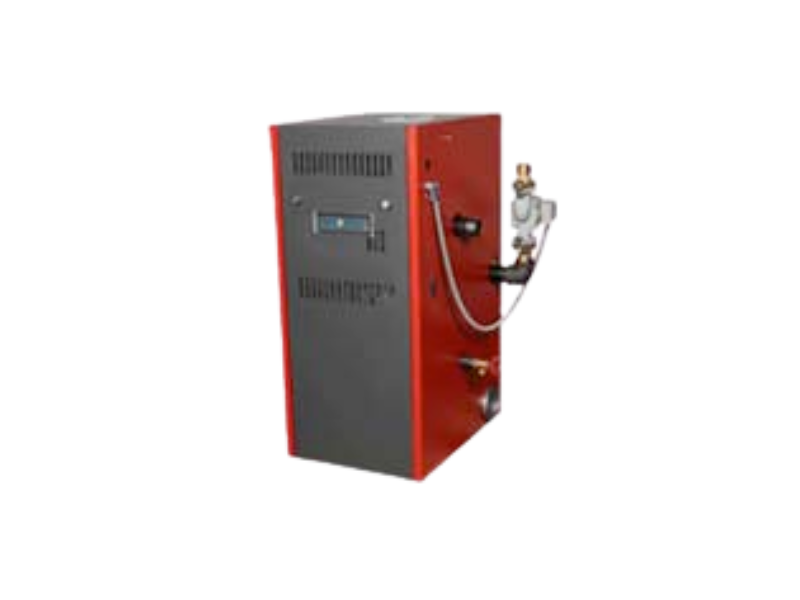

Parts for Crown Boiler JSE379SL:
JSE, Gas-Fired Natural Draft Steam Boilers, 379, Standing Pilot, Propane
Manufacturer: Crown Boiler
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
68 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10004718 | ROLLOUT SWITCH, G4AM0600240C | - | 1.000 | $ 32.96 | ADD TO CART |
|
P10004720 | BLOCKED VENT SWITCH ASSY. (INCLUDES MOUNTING BRACKET) | - | 1.000 | $ 31.93 | ADD TO CART |
|
P10002678 | 1 IN. BURNER WITH PILOT BRACKET | - | 1.000 | $ 104.03 | ADD TO CART |
|
P10002680 | 1 IN. BURNER LESS PILOT BRACKET | - | 24.000 | $ 94.76 | ADD TO CART |
|
P10004796 | THERMOCOUPLE | - | 1.000 | $ 59.74 | ADD TO CART |
|
P10001668 | DOOR KNOB | - | 2.000 | $ 13.39 | ADD TO CART |
|
P10001738 | VENT DAMPER | - | 1.000 | $ 419.21 | ADD TO CART |
|
P10003798 | PROBE TYPE L.W.C.O., CG400 | - | 1.000 | $ 318.27 | ADD TO CART |
|
P10001704 | PRESSURE GUAGE | - | 1.000 | $ 64.89 | ADD TO CART |
|
P10004808 | 24V TRANSFORMER, AT140D1012 | - | 1.000 | $ 66.95 | ADD TO CART |
|
P10004900 | SPST RELAY, R822581049 | - | 1.000 | $ 152.44 | ADD TO CART |
| P10004434 | COMPLETE HEAT EXCHANGER ASSY. | - | 1.000 | $ 4,637.06 | ADD TO CART | |
| P21027853 | LEFT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200487 | RIGHT END SECTION | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200488 | INTERMEDIATE SECTION | - | 10.000 | $ 0.00 | ADD TO CART | |
| P10200489 | UPPER PUSHNIPPLE | - | 11.000 | $ 0.00 | ADD TO CART | |
| P10200490 | LOWER PUSHNIPPLE | - | 11.000 | $ 31.93 | ADD TO CART | |
| P10200496 | BASE TRAY | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200497 | LEFT END BASE PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200498 | RIGHT END BASE PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200504 | REAR BASE PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200509 | FRONT BASE PANEL (INCLUDES INSULATION) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200514 | BURNER ACCESS PANEL (INCLUDES INSULATION) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200515 | BASE END INSULATION | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10200521 | BURNER TRAY | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200522 | #10X 2 CUP HEAD PIN | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10200523 | #10X 1-5/8 CUP HEAD PIN | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10199040 | 1-1/4X 1-1/8 SPEED NUT | - | 8.000 | $ 0.00 | ADD TO CART | |
| P10136974 | 5/16 USS FLAT WASHER | - | 8.000 | $ 4.12 | ADD TO CART | |
| P10200524 | 5/16-18 BRASS HEX NUT | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10004540 | #10 X 1/2 TRUSS HD SCREW | - | 2.000 | $ 4.12 | ADD TO CART | |
| P10196642 | ROLLOUT SWITCH BRACKET | - | 1.000 | $ 3.09 | ADD TO CART | |
| P10196643 | #8 x 3/4 IN. SELF TAPPING SCREW | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10196682 | #10 x 1/2 IN. SHEET METAL SCREW | - | 2.000 | $ 3.09 | ADD TO CART | |
| P10004538 | 1/4-20 X 1/2 SELF TAPPING SCREW | - | 27.000 | $ 4.12 | ADD TO CART | |
| P10004546 | 1/4-20 BRASS WING NUT | - | 4.000 | $ 12.36 | ADD TO CART | |
| P10196644 | 5/16-18 LOCK NUT | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10200530 | FLUE COLLECTOR | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004548 | 1/4-20 x 3 IN. CARRIAGE BOLT | - | 2.000 | $ 5.15 | ADD TO CART | |
| P10001672 | 1/4 IN. USS FLAT WASHER | - | 2.000 | $ 4.12 | ADD TO CART | |
| P10197211 | 10.1 oz TUBE SILICONE SEALANT | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200544 | MANIFOLD (1 IN. BURNERS) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10004520 | PILOT TUBING | - | 1.000 | $ 32.96 | ADD TO CART | |
| P10001496 | 1/8 SHORT FERRULE, (INCLUDED WITH GAS VALVE), 392449 | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10137847 | 1/8 LONG FERRULE, (INCLUDED WITH PILOT ASSEMBLY), 392449-4 | - | 1.000 | $ 5.31 | ADD TO CART | |
| P10200546 | LEFT SIDE JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200547 | RIGHT SIDE JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200552 | REAR JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200558 | TOP JACKET PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200564 | FRONT PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10200570 | VESTIBULE PANEL | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21149683 | VERTICAL JACKET CLIP | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10001670 | 8-32 X 1/4 IN. H.W.H. SCREW | - | 2.000 | $ 4.12 | ADD TO CART | |
| P10004604 | GLASS SET | - | 1.000 | $ 147.29 | ADD TO CART | |
| P10003790 | FLOAT TYPE L.W.C.O., #67 CR-2 | - | 1.000 | $ 669.50 | ADD TO CART | |
| P10001710 | 3/4 IN. SAFETY VALVE (15 psi) | - | 1.000 | $ 66.95 | ADD TO CART | |
| P10001694 | 90 DEGREE PIG-TAIL | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10001530 | PRESSURE LIMIT, PA404A1009 | - | 1.000 | $ 138.02 | ADD TO CART | |
| P10001688 | 3/4 IN. BOILER DRAIN | - | 1.000 | $ 48.41 | ADD TO CART | |
| P10197749 | JUNCTION BOX | - | 1.000 | $ 27.81 | ADD TO CART | |
| P10004728 | TRANSFORMER MOUNTING PLATE | - | 1.000 | $ 19.57 | ADD TO CART | |
| P10196684 | 8-32 X 1/2 IN. SELF TAPPING SCREW | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10200571 | SPILL SWITCH HARNESS | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10005030 | J-BOX - R.O. SWITCH HARNESS | - | 1.000 | $ 44.29 | ADD TO CART | |
| P10141267 | L.W.C.O. - J-BOX HARNESS, #67 | - | 1.000 | $ 24.40 | ADD TO CART | |
| P10200572 | L.W.C.O. - J-BOX HARNESS, CG400 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10005024 | PRESSURE LIMIT - J-BOX HARNESS | - | 1.000 | $ 40.17 | ADD TO CART | |
|

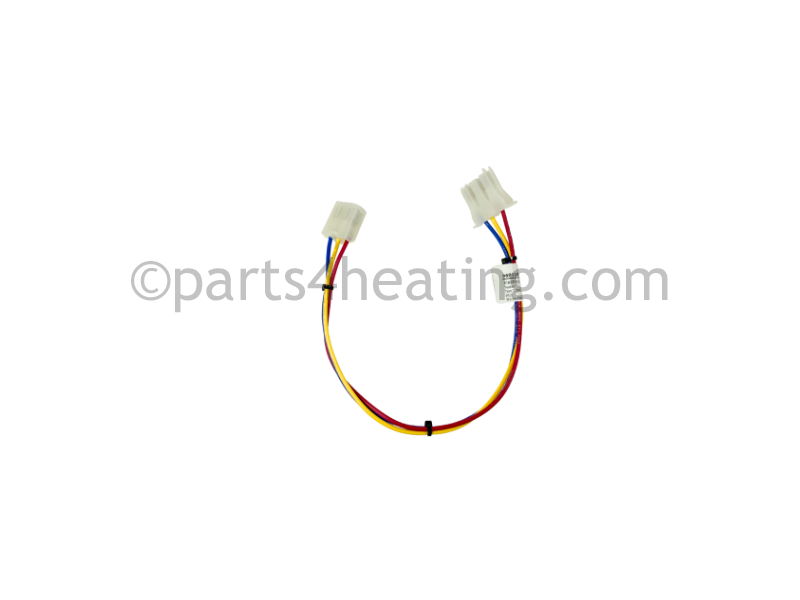

P10005016 | INTERMITTENT IGNITION HARNESS | - | 1.000 | $ 41.20 | ADD TO CART |
