Parts for Burnham Mfg MPC18:

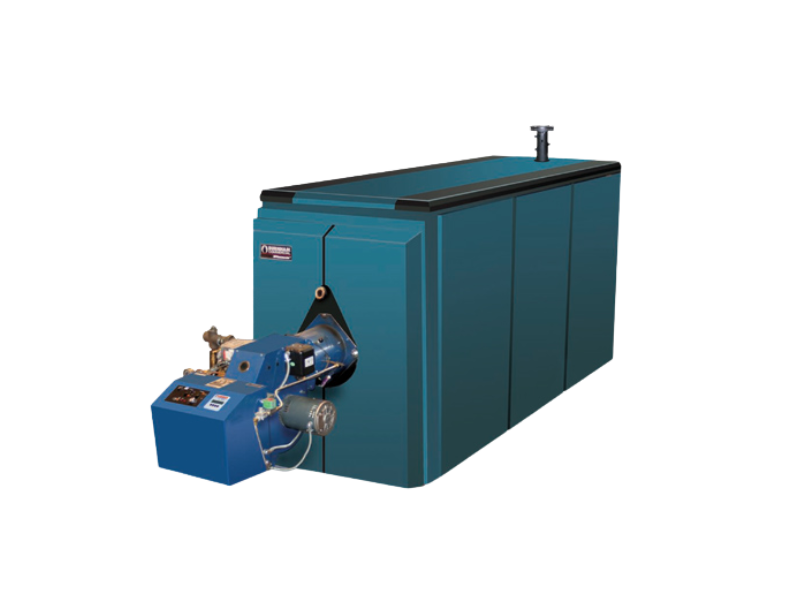

MPC, Multi-Pass Commercial Cast Iron Boiler, 18
Manufacturer: Burnham Mfg
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
130 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
| P21153641 | MPC-R Rear Section (Machined) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153642 | MPC-C Center Section (Machined) | - | 16.000 | $ 0.00 | ADD TO CART | |
| P21153643 | MPC-F Front Section (Machined) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10165418 | 3 in Cast Iron Slip Nipple (Machined) | - | 17.000 | $ 0.00 | ADD TO CART | |
| P10211271 | 7 in Cast Iron Slip Nipple (Machined) | - | 17.000 | $ 0.00 | ADD TO CART | |
| P21153644 | 5/8 in Dia. x 86 in Lg. Pre-cut Silicone Coated Combustion Chamber Rope Gasket | - | 16.000 | $ 0.00 | ADD TO CART | |
| P21153645 | 5/8 in Dia. x 164 in Lg. Pre-cut Silicone Coated Perimeter Rope Gasket | - | 17.000 | $ 0.00 | ADD TO CART | |
| P21153738 | Tie Rod: 5/8 in - 11x 31 in Lg. | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153773 | Tie Rod: 5/8 in - 11 x 27 in Lg. | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153784 | Tie Rod: 5/8 in - 11 x 34 in Lg. | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153774 | 5/8 in - 11 x 2-1/8 in Coupling Hex Nut, Plated | - | 12.000 | $ 0.00 | ADD TO CART | |
| P21153647 | 5/8 in Flat Washer, USS, Plain | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153648 | 5/8 in x 11 Hex Nut, Plain | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153649 | Tie Rod Tension Spring Assembly | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153650 | 4 in NPT CI Supply Manifold | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153651 | 4 in NPT CI Return Manifold | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153652 | 5/8 in x 158 in Lg. Pre-Cut Silicone Coated Rope Gasket (BSD & Flue Collector) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153653 | Cast Iron Rear Flue Collector, Machined | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10165674 | 3/8 in Flat Washer, USS, Plated | - | 6.000 | $ 0.00 | ADD TO CART | |
| P21153654 | 3/8 in -16 x 1-1/4 in Lg. Hex Head Cap Screw, Plain | - | 6.000 | $ 0.00 | ADD TO CART | |
| P10166218 | 1/4 in NPT Square Head Plug, Pipe, Brass | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153655 | Cast Iron Clean-out Cover Assembly (Includes Items 8A & 9) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153656 | Cast Iron Clean-out Cover, Painted | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153657 | 1/2 in Dia. x 24-1/2 in Lg. Pre-Cut Silicone Coated Rope Gasket, (Clean-out Cover) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10166203 | 5/16 in Flat Washer, USS, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10166202 | 5/16 in -18 x 7/8 in Lg. Hex Head Cap Screw, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153658 | BSD Hinge/Latch (Machined) | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153659 | BSD Hinge Loop (Machined) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153660 | 7/16 in Split-Lock Washer, Plated | - | 10.000 | $ 0.00 | ADD TO CART | |
| P21153661 | 7/16 in -14x 1-1/2 in Lg. Hex Head Cap Screw, Plated | - | 10.000 | $ 0.00 | ADD TO CART | |
| P21153662 | Burner Swing Door Assembly (Includes Items 16A, 17 & 18) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153663 | Burner Swing Door, Machined & Painted | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153664 | Burner Swing Door Insulation (RCF) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153665 | Internal BSD Observation Port Gasket (RCF) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153666 | Observation Port Component: 2 in NPT x 2-1/2 in Lg. Observation Port Nipple | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153667 | Observation Port Component: Sight Glass Fiber Gasket (RCF) | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10108672 | Observation Port Component: Pyrex Sight Glass | - | 1.000 | $ 21.63 | ADD TO CART | |
| P21153668 | Observation Port Component: 2 in Conduit Bushing Observation Port Cap, Plated | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153669 | 9/16 in Split-Lock Washer, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153670 | 9/16 in -12 x 2 in Lg. Hex Head Cap Screw, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10211348 | Burner Adapter Plate Cartons Oil Burner (Includes Item 23): Beckett (CF) BAP No. 02, 10-1/4 in Dia. Hole | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153805 | Burner Adapter Plate Cartons Gas Burner (Includes Item 23): Beckett (CG) BAP No. 08, 8-1/8 in Dia. Hole | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10211351 | Burner Adapter Plate Cartons Oil, Gas, Gas/Oil Combo Burner (Includes Item 23): Power Flame (C) BAP No. 42, 10-3/8 in Dia. Hole | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10211354 | Burner Adapter Plate Gasket (RCF) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153672 | 3/8 in Split-Lock Washer, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153673 | 3/8 in -16 x 7/8 in Lg. Hex Head Cap Screw, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153674 | 1/2 in Flat Washer (USS), Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153675 | 1/2 in-13 Hex Nut, Plated | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153676 | 3 in NPT Countersunk Pipe Plug, Black | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153810 | Flue Outlet Damper Assembly, 12 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153678 | Flue Outlet Damper Mounting Gasket | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153679 | Washer, Flat, 1/4 in USS, Plated | - | 12.000 | $ 0.00 | ADD TO CART | |
| P21153680 | 4 in NPT x 8 in Lg - Supply/Return | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153681 | Jacket Frame-Horizontal Support Channel | - | 4.000 | $ 0.00 | ADD TO CART | |
| P21153682 | Jacket Frame-Horizontal Support Channel Bracket | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153683 | #8 x 1/2 in Lg. Type AB, Slotted Hex Washer Head Sheet Metal Screw, Steel, Plated | - | 48.000 | $ 0.00 | ADD TO CART | |
| P21153684 | 3/8 in -16 x 3-1/2 in Lg. Threaded Rod | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153685 | 11/16 in OD x 7/16 in ID x 17/32 in Lg. Spacer | - | 20.000 | $ 0.00 | ADD TO CART | |
| P21153686 | 3/8 in -16 Serrated Flange Hex Nut, Steel, Plated | - | 16.000 | $ 0.00 | ADD TO CART | |
| P21153687 | Jacket Frame-Lower Front/Center Bracket | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153688 | 5/8 in -11 x 2 in Lg. Hex Head Bolt, Plain | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153689 | Jacket Frame-Vertical Side Channel (Painted) | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153690 | 3/8 in -16 x 13-3/4 in Lg. Threaded Rod | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153691 | 11/16 in OD x 7/16 in ID x 2-21/32 in Lg. Spacer | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153692 | 11/16 in OD x 7/16 in ID x 1-23/32 in Lg. Spacer | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153693 | Jacket Frame-Lower Rear Bracket | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153751 | Return Water Mixing Tube Assembly, Flared Collar 17-13/16 in | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153694 | Return Water Mixing Tube Assembly, Flared Collar 18 in | - | 3.000 | $ 0.00 | ADD TO CART | |
| P21153762 | Return Water Mixing Tube Assembly, Flared Collar 21-5/16 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153777 | Front Heat Exchanger Wrapper Insulation: 4 in Thk Nominal x 31-3/8 in x 140-3/4 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153806 | Center Heat Exchanger Wrapper Insulation: 4 in Thk Nominal x 27 in x 140-3/4 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153814 | Center Heat Exchanger Wrapper Insulation: 4 in Thk Nominal x 33-3/4 in x 140-3/4 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153786 | Rear Heat Exchanger Wrapper Insulation: 4 in Thk Nominal x 35 in x 140-3/4 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153697 | Primary Internal J-Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153698 | Secondary Internal J-Box Assy. w/Securing Channel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153741 | Main Chase-way Channel: 34-5/16 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153778 | Chase-way Channel Extension: 27-1/16 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153793 | Chase-way Channel Extension: 33-13/16 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153700 | #8 x 2-1/2 in Lg. Type AB Slotted Hex Hd Washer Screw, SM, Steel, Plated | - | 10.000 | $ 0.00 | ADD TO CART | |
| P21153701 | 7/64 in Push On Plastic Edge Trim, Polyethylene, Blk, (Cut Length = 16 in Lg.) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153815 | Internal Wiring Harness Assembly: MPC14 Thru MPC18 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153703 | Nylon Cable Tie, Black, T&B #TY-525M or Equivalent | - | 15.000 | $ 0.00 | ADD TO CART | |
| P21153704 | 5/8 in Dia. Cable Clamp, Black, Heyco #3380 or Equivalent | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153705 | Jacket Front Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153706 | Jacket Front Panel Wiring Harness Cover Plate | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153707 | Jacket Left Rear Panel Assy. w/ Insulation | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153708 | Jacket Right Rear Panel Assy. w/ Insulation | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153709 | Jacket Blank Sensor J-Box Cover | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153742 | Jacket Outer Top Corner Panel Assembly with Short & Long: 33-3/4 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153807 | Jacket Outer Top Intermediate Panel Assembly with Long: 27-1/16 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153816 | Jacket Outer Top Intermediate Panel Assembly with Long: 33-13/16 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153788 | Jacket Outer Top Corner Panel Assembly with Short Brackets: 33-3/4 in Lg. | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153756 | Jacket Front Top Panels: 35-13/16 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153779 | Jacket Intermediate Top Panels: 27-1/16 in Lg. | - | 3.000 | $ 0.00 | ADD TO CART | |
| P21153713 | Jacket Rear Top Panel | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153714 | Internal J-Box Cover Plate | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153715 | 7/8 in Dia. Black Snap-in Plug, Alliance #S-78 | - | 8.000 | $ 0.00 | ADD TO CART | |
| P21153780 | Jacket Side Panel Assemblies with Labels: 26-3/16 in x 55-5/16 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153781 | Jacket Side Panels: 26-3/16 in x 55-5/16 in | - | 3.000 | $ 0.00 | ADD TO CART | |
| P21153745 | Jacket Side Panels: 29-15/16 in x 55-5/16 in | - | 2.000 | $ 0.00 | ADD TO CART | |
| P21153796 | Jacket Side Panels: 32-15/16 in x 55-5/16 in | - | 2.000 | $ 0.00 | ADD TO CART | |
| P10000184 | Snap-Bushing, Heyco SB-1093-15, #2166, Black | - | 16.000 | $ 4.33 | ADD TO CART | |
| P21153718 | MPC Logo Name Plate | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153719 | Jacket Left Front BSD Cover Panel Assy. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153720 | Jacket Right Front BSD Cover Panel Assy. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153721 | Jacket BSD Cover Hanger Bracket | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153797 | 2nd Pass Flueway Baffles, 304 Stainless Steel: 58 1/2 in 2P Baffle Assembly w/Handles | - | 4.000 | $ 0.00 | ADD TO CART | |
| P10126230 | Operating Control, Honeywell L4006A2015 | - | 1.000 | $ 211.97 | ADD TO CART | |
| P10122988 | Immersion Well, Honeywell 123871A, 3/4 in x 3 in Insulation | - | 1.000 | $ 40.38 | ADD TO CART | |
| P21153724 | Wiring Harness, Operating Control | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10114260 | Temperature/Pressure Gauge, 3 1/4 in Dia., 1/2 in NPT, 0-100 PSI | - | 1.000 | $ 56.65 | ADD TO CART | |
| P10211436 | Relief Valve, 50 PSI: Conbraco #10-616-10, 1 1/4 in x 1 1/2 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10211432 | Street Elbow, Black Malleable: 1 1/4 in x 90 deg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153817 | Nipple, SCH.40, Black: 1 1/4 in x 4 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153818 | Reducing Bushing, Black Malleable: 1 1/2 in x 1 1/4 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153823 | Relief Valve, 30 PSI: Conbraco #10-617-05, 1 1/2 x 2 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10211433 | Street Elbow, Black Malleable: 1 1/2 in x 90 deg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153824 | Nipple, SCH.40, Black: 1 1/2 in x 4 1/2 in Lg. | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153812 | Relief Valve, 80 PSI: Conbraco #10-615-16, 1 in x 1 1/4 in | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153728 | Probe Low Water Cut-Off: LWCO, McDonnell & Miller 750 P-MT-120 w/Probe | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153729 | Probe Low Water Cut-Off: Wiring Harness, LWCO to J-Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10120466 | Limit, High Limit Control: Limit, Honeywell L4006E1133 | - | 1.000 | $ 161.71 | ADD TO CART | |
| P21153730 | Limit, High Limit Control: Wiring Harness, High Limit to J-Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153731 | Low Fire Hold Control: Limit, Honeywell L4006B1189 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10122994 | Low Fire Hold Control: Immersion Well, Honeywell 123872A, 1/2 in NPT x 3 in Insulation | - | 1.000 | $ 27.81 | ADD TO CART | |
| P21153732 | Low Fire Hold Control: Wiring Harness, LFH Control to J-Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153733 | Low / High / Low Control: Wiring Harness, LHL Control to J-Box | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153734 | Modulation Control: Honeywell T991A1061 | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153735 | Modulation Control: Immersion Well, Honeywell 112630AA, 3/4 in NPT x 1 in Insulation | - | 1.000 | $ 0.00 | ADD TO CART | |
| P21153736 | Modulation Control: Wiring Harness, Mod. Control to J-Box | - | 1.000 | $ 0.00 | ADD TO CART |
