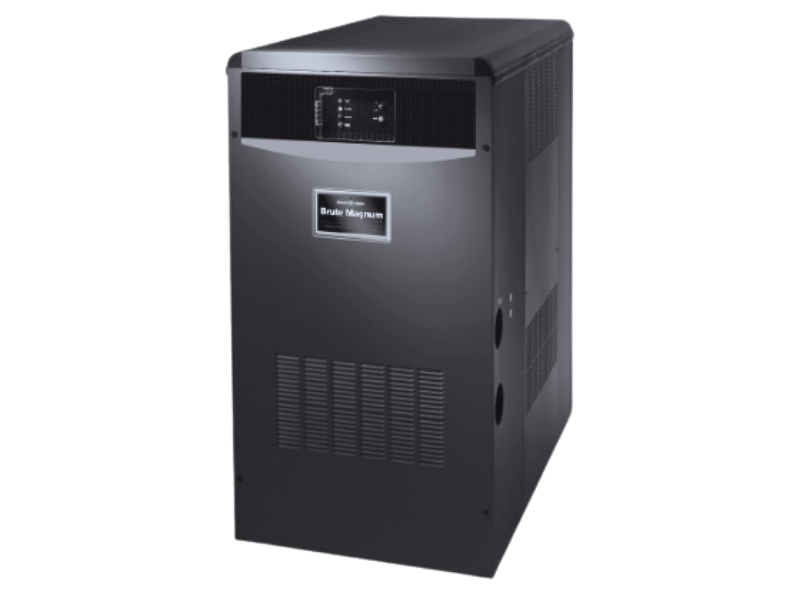

Parts for Bradford White BRHHV1200NAIF:
Brute Magnum, High Efficiency, Volume Water, 1200, Natural Gas, 0' -10, 000', Indoor, Modulating
Manufacturer: Bradford White
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
85 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10159316 | ACTUATOR, RATIO CONTROL | - | 1 | $ 3,367.45 | ADD TO CART |
|
P10015340 | CONTROL,HI LIMIT,100-200F | - | 1 | $ 445.95 | ADD TO CART |
|
P10151911 | CONTROLLER, TEMPERATURE | - | 1 | $ 613.89 | ADD TO CART |
|
P10019768 | GASKET, ACCESS PANEL | - | 2 | $ 93.78 | ADD TO CART |
|
P10019786 | GASKET, BLOWER, MGT/RHEOS | - | 1 | $ 71.97 | ADD TO CART |
|
P10147640 | GAUGE,TEMP/PRESS,230 PSI | - | 1 | $ 138.77 | ADD TO CART |
|
P10015394 | IGN CONTROL LOCAL SENS 1T | - | 1 | $ 925.56 | ADD TO CART |
|
P10147358 | IGNITER, HOT SURFACE | - | 1 | $ 140.69 | ADD TO CART |
|
P10015084 | LIGHT INDICATOR 110V AMBR | - | 1 | $ 31.31 | ADD TO CART |
|
P10015254 | LIGHT INDICATOR AMBER 28V | - | 2 | $ 31.31 | ADD TO CART |
|
P10015252 | LIGHT INDICATOR GREEN 28V | - | 1 | $ 31.31 | ADD TO CART |
|
P10015256 | LIGHT INDICATOR RED 28V | - | 1 | $ 31.31 | ADD TO CART |
|
P10151522 | PCBA, PWM CONVERTER, EBP | - | 1 | $ 416.58 | ADD TO CART |
|
P10150046 | SENSOR, TEMPERATURE | - | 1 | $ 405.96 | ADD TO CART |
|
P10015406 | SENSOR,TEMP,1/8-27NPT PTC | - | 1 | $ 90.33 | ADD TO CART |
|
P10153759 | SWITCH, FLOW, INDOOR | - | 1 | $ 433.97 | ADD TO CART |
|
P10015398 | SWITCH, PRESS DIFF, SPDT | - | 1 | $ 39.18 | ADD TO CART |
|
P10150542 | SWITCH, PRESSURE, GAS/AIR | - | 1 | $ 364.35 | ADD TO CART |
|
P10150075 | SWITCH, PRESSURE, HI-GAS | - | 1 | $ 364.35 | ADD TO CART |
|
P10015396 | SWITCH,PRESS DIFF,SPDT NO | - | 1 | $ 73.25 | ADD TO CART |
|
P10144363 | SWITCH,TOGGLE,DPDT,125VAC | - | 1 | $ 118.47 | ADD TO CART |
|
P10143902 | SWITCH,TOGGLE,DPDT,250VAC | - | 1 | $ 102.71 | ADD TO CART |
|
P10015364 | TRANSFMR,STEP-UP 24V/115V | - | 1 | $ 56.29 | ADD TO CART |
|
P10154791 | VALVE BODY, 1.2 MBTU/HR | - | 1 | $ 4,087.30 | ADD TO CART |
|
P10020554 | VALVE,MANUAL PILOT,1/8" | - | 2 | $ 60.04 | ADD TO CART |
|
P10148424 | WELL, IMMERSION 1/2 NPT | - | 1 | $ 242.81 | ADD TO CART |
|
P10145252 | WELL,IMMERSION,3/8" BULB | - | 2 | $ 116.96 | ADD TO CART |
|
P10015434 | WIRE HARNESS,ACTUATOR | - | 1 | $ 40.32 | ADD TO CART |
| P21059195 | ACTUATOR,VALVE,ELECTRONIC | - | 1 | $ 1,577.48 | ADD TO CART | |
| P10020358 | BLANKET, REFRACTORY | - | 1 | $ 98.33 | ADD TO CART | |
| P21059198 | BLOWER, GAS, FAN/MOTOR | - | 1 | $ 3,062.37 | ADD TO CART | |
| P10019848 | BOOT,INSULATOR,TERMINAL | - | 1 | $ 16.81 | ADD TO CART | |
| P10158303 | BURNER, MAIN, RHEOS 1200 | - | 1 | $ 2,397.79 | ADD TO CART | |
| P10015408 | CONTROL, TEMP, 100-200F | - | 1 | $ 320.39 | ADD TO CART | |
| P10150144 | FILTER, AIR INLET | - | 1 | $ 353.49 | ADD TO CART | |
| P10016888 | FLANGE,COMPANION,2-1/2" | - | 4 | $ 161.20 | ADD TO CART | |
| P10015418 | FUSE 3A 250V, SIZE 3AG | - | 1 | $ 10.01 | ADD TO CART | |
| P10019846 | GASKET CERAMIC FBR 4 X 12 | - | 1 | $ 12.46 | ADD TO CART | |
| P10019756 | GASKET CLSD CELL .5x.125 | - | 9 | $ 3.41 | ADD TO CART | |
| P10019794 | GASKET, BLOWER ADAPTER | - | 1 | $ 23.33 | ADD TO CART | |
| P10145634 | GASKET, BURNER | - | 1 | $ 106.25 | ADD TO CART | |
| P10019764 | GASKET, DIVIDER, IN/OUT | - | 1 | $ 10.68 | ADD TO CART | |
| P10019828 | GASKET, FAN INLET | - | 1 | $ 22.53 | ADD TO CART | |
| P10019782 | GASKET, FELT, FILTER BOX | - | 1 | $ 29.08 | ADD TO CART | |
| P10019804 | GASKET, FLANGE, 2-1/2" | - | 5 | $ 16.93 | ADD TO CART | |
| P10019772 | GASKET, FRONT, SIDE | - | 2 | $ 21.97 | ADD TO CART | |
| P10019790 | GASKET, FRONT/REAR, UPPER | - | 2 | $ 45.09 | ADD TO CART | |
| P10019792 | GASKET, HEADER, HEAT EXCH | - | 1 | $ 216.95 | ADD TO CART | |
| P10019836 | GASKET, LOWER, HX COVER | - | 1 | $ 48.63 | ADD TO CART | |
| P10019784 | GASKET, OUTLET, FILTER BX | - | 1 | $ 35.17 | ADD TO CART | |
| P10019776 | GASKET, SIDE, UPPER | - | 2 | $ 31.11 | ADD TO CART | |
| P10019830 | GASKET,LWR FRT COMB CHMBR | - | 1 | $ 45.23 | ADD TO CART | |
| P10019832 | GASKET,SIDE,COMB CHAMBER | - | 2 | $ 59.97 | ADD TO CART | |
| P10019834 | GASKET,VERTICLE,HX COVER | - | 2 | $ 49.57 | ADD TO CART | |
| P10015456 | HARNESS, FAN TO PWM BOARD | - | 1 | $ 35.06 | ADD TO CART | |
| P10015458 | HARNESS,PWM TO CTRL PANEL | - | 1 | $ 19.90 | ADD TO CART | |
| P10020360 | INSULATION BLANKET, RHEOS | - | 1 | $ 211.82 | ADD TO CART | |
| P10020304 | INSULATION TOP PANEL SIDE | - | 2 | $ 2.43 | ADD TO CART | |
| P10020198 | INSULATION, 1/4 MICROLITE | - | 31 | $ 2.62 | ADD TO CART | |
| P10020296 | INSULATION, ACCESS PANEL | - | 2 | $ 8.97 | ADD TO CART | |
| P10020306 | INSULATION, FRONT PANEL | - | 2 | $ 5.98 | ADD TO CART | |
| P10020318 | INSULATION, FRONT PNL CTR | - | 1 | $ 2.62 | ADD TO CART | |
| P10020320 | INSULATION, SIDE PANEL | - | 2 | $ 21.65 | ADD TO CART | |
| P10020330 | INSULATION,BOTTOM PNL,F/R | - | 2 | $ 5.00 | ADD TO CART | |
| P10020332 | INSULATION,BOTTOM PNL,MID | - | 1 | $ 7.71 | ADD TO CART | |
| P10020322 | INSULATION,FLUE PANEL,TOP | - | 1 | $ 5.48 | ADD TO CART | |
| P10020324 | INSULATION,FLUE PNL,SIDE | - | 2 | $ 4.93 | ADD TO CART | |
| P10020336 | INSULATION,FLUE,BOTTOM RR | - | 1 | $ 7.73 | ADD TO CART | |
| P10020338 | INSULATION,FLUE,TOP RR | - | 1 | $ 10.92 | ADD TO CART | |
| P10020302 | INSULATION,TOP PNL FRONT | - | 1 | $ 6.33 | ADD TO CART | |
| P10020300 | INSULATION,TOP PNL REAR | - | 1 | $ 8.04 | ADD TO CART | |
| P10154973 | LOW WATER CUT OFF | - | 1 | $ 592.06 | ADD TO CART | |
| P10152583 | MODULE, STAGE, PROP TEMP | - | 1 | $ 668.99 | ADD TO CART | |
| P10019844 | O-RING, .614"ID .754"OD | - | 2 | $ 0.67 | ADD TO CART | |
| P10148615 | PRV, 3/4 x 3/4", 125 PSI | - | 1 | $ 429.39 | ADD TO CART | |
| P10013300 | PUMP, CENTRIFUGAL, 1 HP | - | 1 | $ 6,324.24 | ADD TO CART | |
| P10020356 | TILE, BOTTOM, COMB CH | - | 1 | $ 162.98 | ADD TO CART | |
| P10155979 | VALVE, GAS, AUTO SAFETY | - | 1 | $ 574.34 | ADD TO CART | |
| P10140802 | VALVE, PILOT GAS,STRAIGHT | - | 4 | $ 30.86 | ADD TO CART | |
| P10177736 | VALVE,BALL,GAS,1x1 NPT | - | 2 | $ 104.96 | ADD TO CART | |
| P10015640 | WIRE HARNESS,BLOWER,1200 | - | 1 | $ 55.31 | ADD TO CART | |
| P10015438 | WIRE HARNESS,CTRL,FENWALL | - | 1 | $ 100.34 | ADD TO CART | |
| P10015416 | WIRE HARNESS,FX05 CONTROL | - | 1 | $ 80.79 | ADD TO CART | |
| P10015440 | WIRE HARNESS,IGNITER | - | 1 | $ 70.84 | ADD TO CART | |
| P10015436 | WIRE HARNESS,LWCO,RHEOS | - | 1 | $ 65.07 | ADD TO CART |
