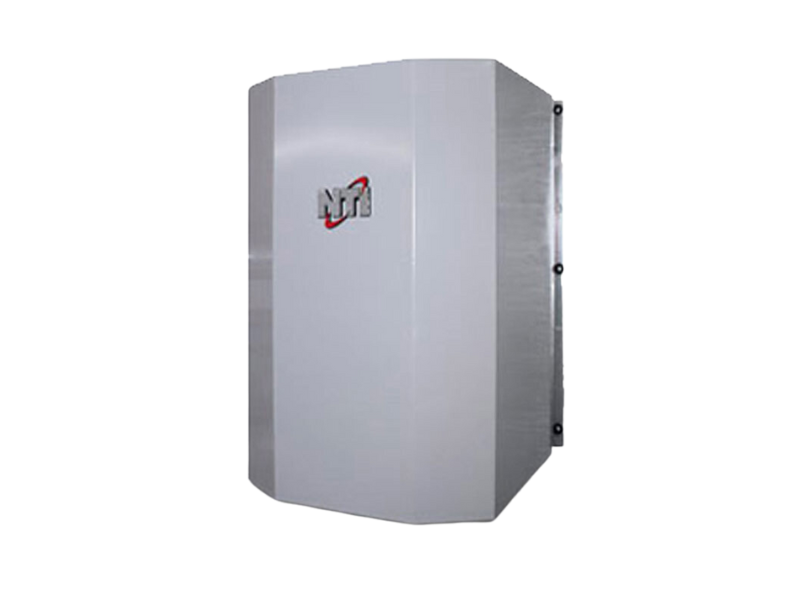

Parts for Ariston Group USA (NTI Boilers) Ti200 Combi:
Trinity, Trinity Ti Boiler, 200 Combi
Manufacturer: Ariston Group USA (NTI Boilers)
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
78 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10102188 | Premix Burner, 200.6 | - | 1.000 | $ 1,034.28 | ADD TO CART |
|
P10102206 | Premix Burner Gasket | - | 1.000 | $ 33.98 | ADD TO CART |
|
P10102218 | Extended Air Tube | - | 1.000 | $ 164.34 | ADD TO CART |
|
P10102200 | Blower Gasket | - | 1.000 | $ 16.69 | ADD TO CART |
|
P10103440 | EBM Blower, Kit RG148/1200-3633 (55667.01970) | - | 1.000 | $ 1,149.53 | ADD TO CART |
|
|
P10103442 | EBM Blower, Kit RG148/1200-3633 (55667.01970), Old Part | - | 1.000 | $ 1,176.58 | ADD TO CART |
|
P10103568 | Venturi Gasket Cork, Old Part | - | 1.000 | $ 10.39 | ADD TO CART |
|
P10103566 | Venturi 001, Old Part | - | 1.000 | $ 141.33 | ADD TO CART |
|
P10103448 | Igniter Hot Surface, Norton 601, SS Shield (Includes Disconnects), Old Part | - | 1.000 | $ 108.51 | ADD TO CART |
|
P10102214 | Igniter Gasket Hot Surface, Ti/M | - | 1.000 | $ 18.48 | ADD TO CART |
|
P10102140 | Gas Valve Adapter 1/2 in. NPT Elbow | - | 1.000 | $ 24.72 | ADD TO CART |
|
P10102194 | Thermister 1/8 in. BSP | - | 1.000 | $ 145.93 | ADD TO CART |
|
P10103486 | Thermister 1/4 in. NPT | - | 1.000 | $ 167.16 | ADD TO CART |
|
P10103510 | Low Water Pressure Switch 1/4 in. NPT | - | 1.000 | $ 152.65 | ADD TO CART |
|
P10103508 | Low Water Pressure Switch 1/4 in. NPT, Old Part | - | 1.000 | $ 151.78 | ADD TO CART |
|
P10102288 | Low Water Pressure Switch 1/8 in. BSP | - | 1.000 | $ 153.66 | ADD TO CART |
|
P10102152 | Tempering Valve, # AM101-US-1 | - | 1.000 | $ 567.73 | ADD TO CART |
|
P10102210 | Composite Flue Outlet Gasket | - | 1.000 | $ 34.37 | ADD TO CART |
|
P10102208 | Trinity Flue Box To Heat Exchanger Gasket | - | 1.000 | $ 26.78 | ADD TO CART |
|
P10102122 | Flow Switch FS-380 .5 activate | - | 1.000 | $ 592.65 | ADD TO CART |
|
P10102190 | Manifold Limit 1/8 in. BSP | - | 1.000 | $ 138.15 | ADD TO CART |
|
P10103472 | Manifold Limit 1/4 in. NPT c/w Disconnects | - | 1.000 | $ 260.45 | ADD TO CART |
|
P10102250 | Y Drain Fitting 5/8 in. White | - | 1.000 | $ 30.74 | ADD TO CART |
|
P10102126 | Heat Exchanger Brazed Plate, LA1430 | - | 1.000 | $ 850.43 | ADD TO CART |
|
P10102148 | 3 Way Valve 3/4 in., VU54S2016B, | - | 1.000 | $ 328.05 | ADD TO CART |
|
P10164704 | Condensate Trap | - | 1.000 | $ 93.98 | ADD TO CART |
|
|
P10102316 | Condensate Trap, Old | - | 1.000 | $ 92.60 | ADD TO CART |
|
P10102216 | Burner Door Viton Gasket | - | 1.000 | $ 98.80 | ADD TO CART |
|
P10102146 | 3 Way Actuator, VU444A1007B | - | 1.000 | $ 351.12 | ADD TO CART |
|
P10103458 | Flame Rod, Lx/Ti/Ts/Tft/VM (60-500), (Includes p/n: 82774) | - | 1.000 | $ 108.85 | ADD TO CART |
|
P10102142 | 1-1/2 in. MJ Coupling | - | 1.000 | $ 37.74 | ADD TO CART |
|
P10102576 | Flue Outlet Adapter SS | - | 1.000 | $ 231.69 | ADD TO CART |
|
P10102170 | Compression Nut Washer, Water Connection, 3/4 in. | - | 1.000 | $ 7.91 | ADD TO CART |
|
P10102192 | Air Switch Huba, 604.E021180, (Set @ .2 in. wc) | - | 1.000 | $ 145.18 | ADD TO CART |
|
P10102128 | Sentry, 2100 Version T2.2 | - | 1.000 | $ 1,351.99 | ADD TO CART |
|
P10103420 | Transformer 24V at 40VA | - | 1.000 | $ 186.08 | ADD TO CART |
|
|
P10103502 | Transformer 24V at 40VA, Old | - | 1.000 | $ 191.91 | ADD TO CART |
|
P10102252 | Terminal Strip | - | 1.000 | $ 61.16 | ADD TO CART |
|
P10103492 | Terminal Strip c/w Cable | - | 1.000 | $ 88.78 | ADD TO CART |
|
P10102138 | Gas Valve Harness | - | 1.000 | $ 62.11 | ADD TO CART |
|
P10102110 | Pressure Relief Valve ASME 3/4 in. NPT, 30psi | - | 1.000 | $ 97.58 | ADD TO CART |
|
P10164705 | Pressure Gauge, Bottom Stem Mount 60psi | - | 1.000 | $ 13.39 | ADD TO CART |
|
P10102180 | Round Mesh Vent Screen, 3 in. | - | 1.000 | $ 11.33 | ADD TO CART |
| P10103386 | Venturi Gasket Cork | - | 1.000 | $ 10.10 | ADD TO CART | |
| P10146955 | Venturi 001 | - | 1.000 | $ 140.06 | ADD TO CART | |
| P10102184 | Gas Valve Orifice 5.2mm, LP | - | 1.000 | $ 38.05 | ADD TO CART | |
| P10103382 | Gas Valve, VK8115V1341B, (Valve Only) | - | 1.000 | $ 651.96 | ADD TO CART | |
| P10164701 | Gas Valve, VK8115V1341B, (Valve Only), Old Part | - | 1.000 | $ 555.62 | ADD TO CART | |
| P10103446 | Igniter Hot Surface, Norton 601, SS Shield (Includes Disconnects) | - | 1.000 | $ 109.38 | ADD TO CART | |
| P10102220 | Igniter Gasket Graphite (Ignition Electrode / Flame Rod) | - | 1.000 | $ 18.25 | ADD TO CART | |
| P10103424 | Gas Valve Regulator Vent Upgrade Kit c/w Clamp, (Includes p/n: 83134) | - | 1.000 | $ 11.29 | ADD TO CART | |
| P10103426 | Gas Valve Regulator Vent Upgrade Kit c/w Clamp, (Includes p/n: 83134), Old Part | - | 1.000 | $ 11.14 | ADD TO CART | |
| P10102388 | Gas Valve Inlet O-Ring Gasket | - | 1.000 | $ 34.85 | ADD TO CART | |
| P10102304 | Street Tee Brass 1/4 in. | - | 1.000 | $ 17.09 | ADD TO CART | |
| P10102302 | Street Tee Brass 1/8 in. | - | 1.000 | $ 32.96 | ADD TO CART | |
| P10164702 | Auto Air Vent 1/8 in. NPT | - | 1.000 | $ 52.23 | ADD TO CART | |
| P10103436 | Stack Limit 1/4BSP 190F, Dif=30 (c/w Disconnects) | - | 1.000 | $ 361.52 | ADD TO CART | |
| P10103438 | Stack Limit 1/4BSP 190F, Dif=30 (c/w Disconnects), Old Part | - | 1.000 | $ 356.83 | ADD TO CART | |
| P10164703 | Composite Flue Box | - | 1.000 | $ 110.14 | ADD TO CART | |
| P10103474 | Manifold Limit 1/4 in. NPT c/w Disconnects, Old | - | 1.000 | $ 257.48 | ADD TO CART | |
| P10103432 | Heat Exchanger Assembly ASME, (Kit includes p/n: 83396) | - | 1.000 | $ 6,470.26 | ADD TO CART | |
| P10103422 | Heat Exchanger Assembly ASME, (Kit includes p/n: 83396), Old | - | 1.000 | $ 6,373.66 | ADD TO CART | |
| P10103496 | Trinity Divider Plate Insulation Kit c/w Screws & Washers | - | 1.000 | $ 95.77 | ADD TO CART | |
| P10103498 | Trinity Divider Plate Insulation Kit c/w Screws & Washers, Old | - | 1.000 | $ 94.69 | ADD TO CART | |
| P10103462 | Cast Aluminum Burner Door Kit | - | 1.000 | $ 227.01 | ADD TO CART | |
| P10103460 | Flame Rod, Lx/Ti/Ts/Tft/VM (60-500), (Includes p/n: 82774), Old | - | 1.000 | $ 107.95 | ADD TO CART | |
| P10103428 | Air Inlet Assembly | - | 1.000 | $ 31.18 | ADD TO CART | |
| P10103408 | Air Metering Elbow | - | 1.000 | $ 41.56 | ADD TO CART | |
| P10103512 | Flue Adapter Replacement Kit | - | 1.000 | $ 384.19 | ADD TO CART | |
| P21057373 | Ignition Module, Fenwal | - | 1.000 | $ 598.82 | ADD TO CART | |
| P10102202 | Control Panel & Harness | - | 1.000 | $ 1,998.84 | ADD TO CART | |
| P10103452 | Control Panel & Harness, Less Sentry & Fenwal | - | 1.000 | $ 279.13 | ADD TO CART | |
| P10103418 | Front Cover | - | 1.000 | $ 98.88 | ADD TO CART | |
| P10102278 | Gas Valve to Venturi Screws & Seal | - | 1.000 | $ 10.17 | ADD TO CART | |
| P10102438 | CPVC Pipe 3 in., System 636, 5 in. Long | - | 1.000 | $ 71.79 | ADD TO CART | |
| P10102754 | Natural Gas To LP Conversion Instructions, (Included in 82650-1) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102222 | Conversion Decal, (Included In 82650-1) | - | 1.000 | $ 5.15 | ADD TO CART | |
| P10103434 | NG to LP Conversion Kit, (Various Models) | - | 1.000 | $ 37.98 | ADD TO CART |
