Parts for Ariston Group USA (NTI Boilers) LX500WH:

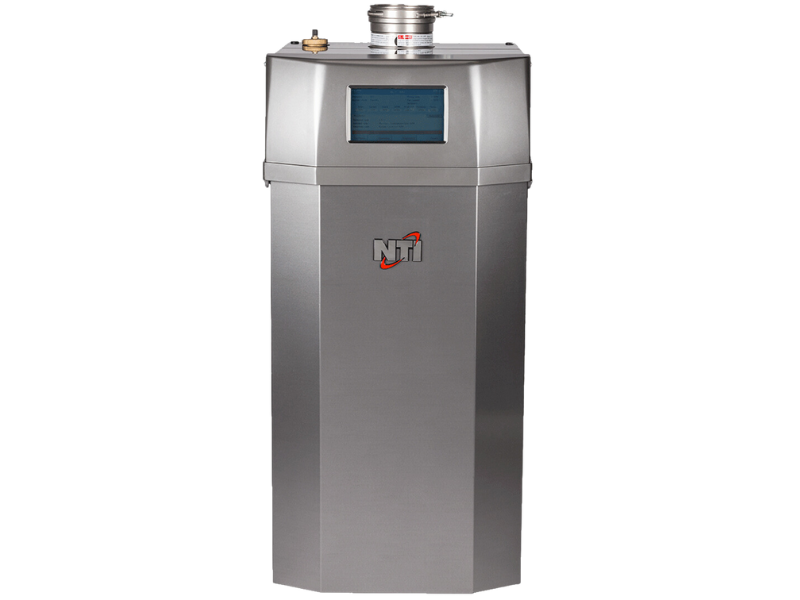

Trinity, Modulating Gas Water Heater, 500WH
Manufacturer: Ariston Group USA (NTI Boilers)
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
74 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10103518 | Premix burner, (Lx400-500) | - | 1.000 | $ 1,643.57 | ADD TO CART |
|
P10102206 | Premix Burner Gasket, (Lx150-500) | - | 1.000 | $ 33.98 | ADD TO CART |
|
P10102212 | Blower Gasket, (Lx150-500) | - | 1.000 | $ 11.19 | ADD TO CART |
|
P10103570 | EBM Blower, NRG137, (Lx500) | - | 1.000 | $ 1,573.93 | ADD TO CART |
|
P10102340 | Outlet Sensor Dual, (Lx Series) | - | 1.000 | $ 81.46 | ADD TO CART |
|
P10102464 | Flue Sensor Dual, (Lx Commercial) | - | 1.000 | $ 106.18 | ADD TO CART |
|
P10102338 | Inlet Sensor Single, (Lx Series) | - | 1.000 | $ 76.44 | ADD TO CART |
|
P10102216 | Burner Door Viton Gasket, (Lx150-500) | - | 1.000 | $ 98.80 | ADD TO CART |
|
P10102390 | Cast Alum Burner Door, (Lx150-200,500) | - | 1.000 | $ 56.78 | ADD TO CART |
|
P10103458 | Flame Rod, (Lx150-500) | - | 1.000 | $ 108.85 | ADD TO CART |
|
P10102192 | Air Switch Huba, 604.E021180, set @ .15 in w.c., (Lx Series) | - | 1.000 | $ 145.18 | ADD TO CART |
|
P10102358 | Spark Igniter Wire 12 in, (Lx Series) | - | 1.000 | $ 30.90 | ADD TO CART |
|
P10102470 | Transformer 24V at 75VA, (Lx Commercial) | - | 1.000 | $ 251.76 | ADD TO CART |
|
P10102460 | ICP Honeywell Sola Controller, R7910A1001, (Lx Commercial) | - | 1.000 | $ 3,376.53 | ADD TO CART |
|
P10102578 | Fuse Holder 20 Amp at 250VAC Max, (Lx Series) | - | 1.000 | $ 21.72 | ADD TO CART |
|
P10102364 | Fuse Littlefuse 7A at 250VAC Fast Blow, (Lx Series) | - | 1.000 | $ 10.37 | ADD TO CART |
|
P10103560 | Flow switch Paddles – 2-1/2 in, FS8-W, (Lx Commercial) | - | 1.000 | $ 961.91 | ADD TO CART |
|
P10102630 | Gas Valve Harness Dungs, (Lx500) | - | 1.000 | $ 80.06 | ADD TO CART |
| P10102274 | Extended Air Tube, (Lx300-500) | - | 1.000 | $ 212.68 | ADD TO CART | |
| P10102628 | Gas Valve, GB-ND 057, (Lx500) | - | 1.000 | $ 985.66 | ADD TO CART | |
| P10164723 | Ignition Electrode Dual - c/w gasket, (Lx150-500), gap = 3/16 to 1/4 inch | - | 1.000 | $ 103.84 | ADD TO CART | |
| P10102220 | Flame Probe Gasket, (Lx Series) | - | 1.000 | $ 18.25 | ADD TO CART | |
| P10102632 | Gas Valve Adapter 3/4 in NPT c/w screws and O-ring, 253-517, (Lx500) | - | 1.000 | $ 93.30 | ADD TO CART | |
| P10102240 | 1/4 inx 1/8 in Bushing Brass, (Lx Series) | - | 1.000 | $ 9.18 | ADD TO CART | |
| P10164702 | Automatic Air Vent 1/8 in, (Lx Series) | - | 1.000 | $ 52.23 | ADD TO CART | |
| P10102502 | Plug, Brass 1/2 in NPT, (Lx Commercial) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102622 | Heat Exchanger-ASME, (Lx500) | - | 1.000 | $ 12,714.42 | ADD TO CART | |
| P10102356 | Tee PVC, 1/2 in Sch.40 White, (Lx Series) | - | 1.000 | $ 7.81 | ADD TO CART | |
| P10102354 | Elbow Street PVC 1/2 in Sch.40, White (Lx Series) | - | 1.000 | $ 8.10 | ADD TO CART | |
| P10102626 | Condensate Drain Tube, (Lx500-600) | - | 1.000 | $ 115.36 | ADD TO CART | |
| P10103496 | Trinity Divider Plate Insulation c/w Washer & Screw, (Lx Series) | - | 1.000 | $ 95.77 | ADD TO CART | |
|
P10102362 | Burner Door Ceramic Disc, (Lx150-200,500) | - | 1.000 | $ 58.30 | ADD TO CART |
| P10102662 | Flue Outlet Adapter c/w Tabs, (Lx500-600) | - | 1.000 | $ 638.13 | ADD TO CART | |
| P10102472 | Air Inlet Adapter SS, (Lx Commercial) | - | 1.000 | $ 163.35 | ADD TO CART | |
| P10102478 | Exhaust Test Plug, (Lx300-800) | - | 1.000 | $ 33.48 | ADD TO CART | |
| P10102406 | Grommet Vinyl 3/4 in IPS, (Lx400) | - | 1.000 | $ 11.34 | ADD TO CART | |
| P10102520 | Grommet Vinyl 2 1/2 in IPS, (3125), (Lx Commercial) | - | 1.000 | $ 7.21 | ADD TO CART | |
| P10102314 | Display Molding (Models manufactured before June 1, 2012) | - | 1.000 | $ 224.00 | ADD TO CART | |
| P10102858 | Display Molding (Models manufactured after June 1, 2012) | - | 1.000 | $ 225.91 | ADD TO CART | |
| P10103532 | Display Upgrade kit (Models manufactured before June 1, 2012) | - | 1.000 | $ 0.00 | ADD TO CART | |
| P10102864 | Display, S7999D, Black (Models manufactured after June 1, 2012) | - | 1.000 | $ 1,805.91 | ADD TO CART | |
| P10102368 | Barrier Strip Line Voltage, (Lx Series) | - | 1.000 | $ 42.74 | ADD TO CART | |
| P10103538 | Ignition Coil, Q652B1006/B, (Lx Series) | - | 1.000 | $ 290.35 | ADD TO CART | |
| P10102160 | SNAP BUSHING 1 in, (Lx Series) | - | 1.000 | $ 14.90 | ADD TO CART | |
| P10103530 | Power Supply - Touch Screen, (Lx Series) | - | 1.000 | $ 1,322.14 | ADD TO CART | |
| P10102544 | Control Panel Cover, (Lx Commercial) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102546 | Control Panel, (Lx Commercial) | - | 1.000 | $ 53.56 | ADD TO CART | |
| P10102494 | Barrier Strip Low Voltage, (Lx Commercial) | - | 1.000 | $ 91.80 | ADD TO CART | |
| P10102386 | Touch Screen Display Support, (Lx Series) | - | 1.000 | $ 90.80 | ADD TO CART | |
| P10103374 | Outdoor Sensor, 10K (Lx Series) | - | 1.000 | $ 103.58 | ADD TO CART | |
| P10102640 | Front Cover, (Lx500) | - | 1.000 | $ 487.56 | ADD TO CART | |
| P10102642 | Right Side, (Lx500) | - | 1.000 | $ 425.06 | ADD TO CART | |
| P10102646 | Left Side, (Lx500) | - | 1.000 | $ 416.20 | ADD TO CART | |
| P10102650 | Top, (Lx500) | - | 1.000 | $ 130.50 | ADD TO CART | |
| P10102654 | Fuel-Air Metallic Tubing with Ends, (Lx500) | - | 1.000 | $ 58.85 | ADD TO CART | |
| P10102656 | High-Vent Pressure Switch, ANA124-406, (Lx500) | - | 1.000 | $ 266.88 | ADD TO CART | |
| P10102482 | Coupling 2 in Brass, (Lx Commercial) | - | 1.000 | $ 210.12 | ADD TO CART | |
|
P10102444 | System Sensor, Pipe Sensor TSA00A4, (Lx Series) | - | 1.000 | $ 84.33 | ADD TO CART |
| P10102664 | Nipple 3/4 in x 5 in Black Iron, (Lx500) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102666 | Elbow, 3/4 in, 90 deg. Street Black Iron, (Lx500) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102636 | Manual Shutoff Valve 3/4 in NPT, (Lx500) | - | 1.000 | $ 97.57 | ADD TO CART | |
| P10102668 | Nipple 3/4 in x 2-1/2 in Black Iron, (Lx500) | - | 1.000 | $ 4.12 | ADD TO CART | |
| P10102522 | Bushing 2 in x 1 in Brass, (Lx Commercial) | - | 1.000 | $ 373.19 | ADD TO CART | |
| P10102484 | Tee 2 in x 2 in x 2 in Brass, (Lx Commercial) | - | 1.000 | $ 567.66 | ADD TO CART | |
| P10102518 | Plug 7/8 in Black Dome, (Lx Commercial) | - | 1.000 | $ 8.09 | ADD TO CART | |
| P10102498 | Leg Leveler 3/8-16 x 1/5 in, (Lx Commercial) | - | 1.000 | $ 18.47 | ADD TO CART | |
| P10102500 | Leg Leveler Hex Base Cap, (Lx Commercial) | - | 1.000 | $ 8.01 | ADD TO CART | |
| P10102564 | Flow Switch Wiring Conduit, (Lx Commercial) | - | 1.000 | $ 62.83 | ADD TO CART | |
| P10102634 | Grommet Vinyl Air-Inlet, (3375), (Lx500) | - | 1.000 | $ 10.30 | ADD TO CART | |
| P10102480 | Relay Omron, (Lx Commercial) | - | 1.000 | $ 102.92 | ADD TO CART | |
| P10164724 | Rocker Switch Black, (Lx Commercial) | - | 1.000 | $ 8.24 | ADD TO CART | |
| P10102526 | Flow Switch Wiring Conduit Fitting, (Lx Commercial) | - | 1.000 | $ 42.74 | ADD TO CART | |
| P10102670 | Thermal Fuse Heat Exchanger Exterior, (Lx300-800) | - | 1.000 | $ 32.31 | ADD TO CART | |
| P10103008 | M5 Reset Safety Switch, (Lx300-800) | - | 1.000 | $ 36.60 | ADD TO CART |
