Parts for A.O. Smith BTHL-250A 300:

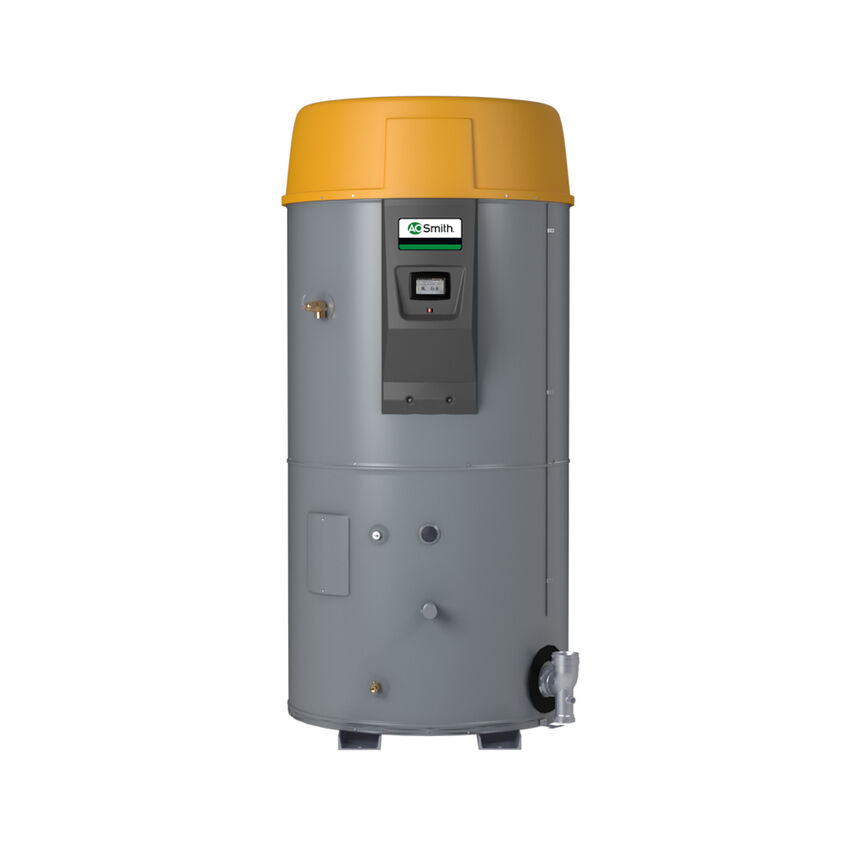

BTHL Cyclone LV High Efficiency Commercial Gas Water Heater , 250A , 300 Series

Manufacturer: A.O. Smith


Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your Questions/Concerns!


35 Parts

Component Description Serial Qty Price
Part Image P10112294 POWERED ANODE SHIELDED.118 DIA X 13.78 - 1 207.03 ADD TO CART
Part Image P10119446 POWERED ANODE,SHIELDED,.118 DIA X 48 - 1 528.39 ADD TO CART
Part Image P21037840 RECTIFIER ASSY,14"L - 1 97.75 ADD TO CART
Part Image P10124698 RG148 ENHANCED BLOWER ASSY W/O PRESS - 1 1,223.64 ADD TO CART
P10123668 BURNER ASSEMBLY - 1 612.85 ADD TO CART
P10117888 CONTROL Printed Circuit Board - IEC BLUE PROGRAMMED - 1 245.14 ADD TO CART
P12985747 COVER PLATE - 1 40.17 ADD TO CART
P10111770 CPAM,COMM POWERD ANODE MODULE - 1 179.22 ADD TO CART
P21040861 FLAME SENSOR ROD - 1 123.59 ADD TO CART
P10123674 GAS VALVE/VENTURI ASSEMBLY,NAT - 1 571.65 ADD TO CART
P10111740 GASKET,BURNER - 1 50.72 ADD TO CART
P10117236 GASKET,BURNER PLATE - 1 43.26 ADD TO CART
P10119136 GASKET,BURNER PLATE - 1 52.06 ADD TO CART
P12981899 GASKET,CLEANOUT - 1 40.05 ADD TO CART
P21036943 GASKET,FLAME ROD,.56" ODX.31"ID - 1 37.08 ADD TO CART
P10116952 GASKET,SILICONE - 1 62.83 ADD TO CART
P21037843 GASKET,SPARK IGNITER,.04" GRAPHITE - 1 38.11 ADD TO CART
P10116896 GASKET,VIEWPORT FOR BTH 300 - 1 33.99 ADD TO CART
P10119138 HEAT SHIELD,SS - 1 107.12 ADD TO CART
P10110018 PILOT TUBING(1/4") W/FITTINGS,60" - 1 36.05 ADD TO CART
P10117672 POWER SUPPLY,CPAM - 1 221.45 ADD TO CART
P10125480 POWERED ANODE,SHIELDED,.118 DIA X 31.5 - 1 356.38 ADD TO CART
P21041109 PROBE,TEMP,LOWER,W/RECESSED CONN,LV - 1 228.82 ADD TO CART
P10111754 PROBE,TEMP,UPPER,W/INTEGRATED CONN - 1 204.97 ADD TO CART
P10119654 RELIEF VALVE,1"FX1"F,150PSI - 1 239.99 ADD TO CART
P10111758 SPARK IGNITER ASSY,STRAIGHT,BURNR GSKT - 1 157.59 ADD TO CART
P10110250 SWITCH,BLOCKED INLET,-2.50"WC,NC - 1 70.04 ADD TO CART
P10117224 SWITCH,BLOCKED OUTLET,2.00"WC,NC - 1 91.05 ADD TO CART
P10117364 SWITCH,GAS PRESSURE,LOW,3.1"WC - 1 59.74 ADD TO CART
P21037844 SWITCH,ON/OFF - 1 40.17 ADD TO CART
P10116790 TUBING,1/4"IDX3/8"OD,22" - 1 24.72 ADD TO CART
P10116916 TUBING,3/16"IDX5/16"OD,15" - 1 39.14 ADD TO CART
P10121218 Transformer Primary 120/240 volts - Secondary 24 volts - 30 volts amperes - 1 95.79 ADD TO CART
P10116894 WINDOW OBSERVATION - 1 33.99 ADD TO CART
P10118402 XRFMR-CABLE ASSY,IGNITION,DANFOSS,120V - 1 235.66 ADD TO CART
