Parts for A.O. Smith BTH-400A 300:

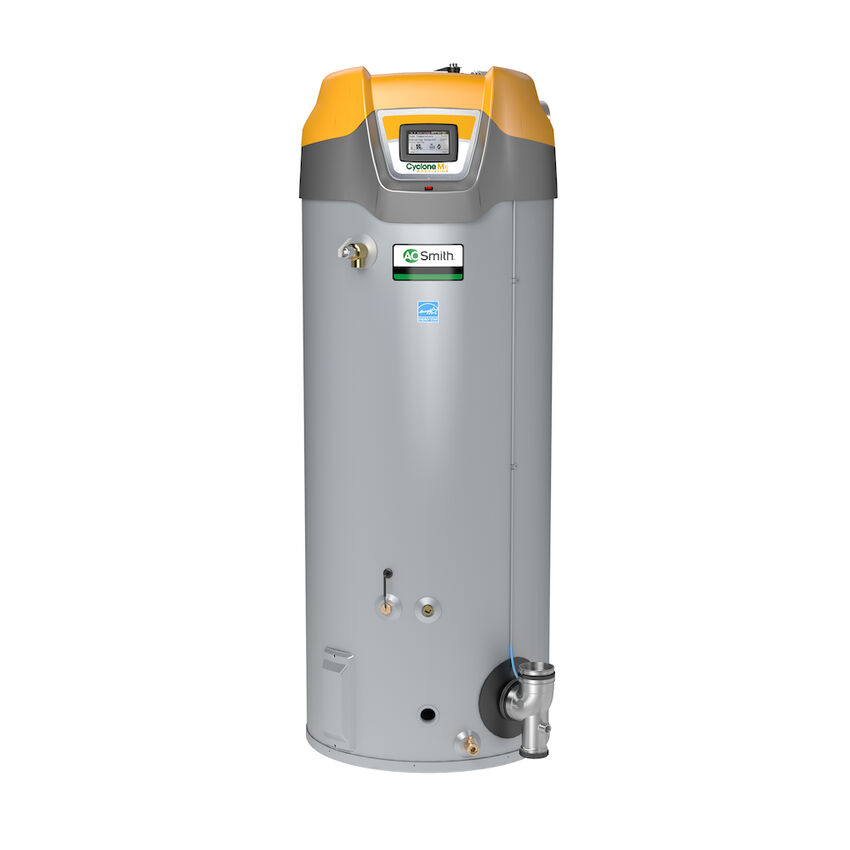

BTH Commercial Gas Water Heater, 400A , 300 Series
Manufacturer: A.O. Smith
Not sure which Part is the right one?
Our unique Model Match step during Checkout will help. We also have a place in your Shopping Cart where you can send us your
Questions/Concerns!
32 Parts
| Component | Description | Serial | Qty | Price | ||
|---|---|---|---|---|---|---|
|
P10119446 | POWERED ANODE,SHIELDED,.118 DIA X 48 | - | 1 | $ 539.72 | ADD TO CART |
| P10124696 | BLOWER ASSY,FASCO,ECM 7.9" | - | 1 | $ 1,915.80 | ADD TO CART | |
| P10123682 | BURNER | - | 1 | $ 963.05 | ADD TO CART | |
| P10110276 | CABLE,SPARK IGNITION,W/4MM TERMINAL | - | 1 | $ 40.17 | ADD TO CART | |
| P10117888 | CONTROL Printed Circuit Board - IEC BLUE PROGRAMMED | - | 1 | $ 288.40 | ADD TO CART | |
| P12985747 | COVER PLATE | - | 1 | $ 45.32 | ADD TO CART | |
| P21040940 | FLAME SENSOR | - | 1 | $ 179.22 | ADD TO CART | |
| P10123680 | GASKET,BURNER PLATE | - | 1 | $ 183.44 | ADD TO CART | |
| P10117232 | GASKET,BURNER/BLOWER | - | 1 | $ 47.38 | ADD TO CART | |
| P12981899 | GASKET,CLEANOUT | - | 1 | $ 35.02 | ADD TO CART | |
| P21036943 | GASKET,FLAME ROD,.56" ODX.31"ID | - | 1 | $ 42.23 | ADD TO CART | |
| P21037843 | GASKET,SPARK IGNITER,.04" GRAPHITE | - | 1 | $ 44.29 | ADD TO CART | |
| P10116896 | GASKET,VIEWPORT FOR BTH 300 | - | 1 | $ 35.02 | ADD TO CART | |
| P10121236 | HEAT SHIELD,SS | - | 1 | $ 170.98 | ADD TO CART | |
| P10121234 | INSULATION DISPYROLITE | - | 1 | $ 153.47 | ADD TO CART | |
| P10110018 | PILOT TUBING(1/4") W/FITTINGS,60" | - | 1 | $ 40.17 | ADD TO CART | |
| P10121246 | POWERED ANODE,19.69" | - | 1 | $ 252.35 | ADD TO CART | |
| P10111756 | PROBE,TEMP,LOWER,W/INTEGRATED CONN | - | 1 | $ 86.52 | ADD TO CART | |
| P10111754 | PROBE,TEMP,UPPER,W/INTEGRATED CONN | - | 1 | $ 210.12 | ADD TO CART | |
| P10111642 | SEALER 2 OZ TUBE | - | 1 | $ 42.23 | ADD TO CART | |
| P10111760 | SPARK IGNITER ASSY(ANGLED) | - | 1 | $ 282.22 | ADD TO CART | |
| P10117276 | SWITCH,BLOCKED INLET,-2.30"WC,NC | - | 1 | $ 74.16 | ADD TO CART | |
| P10117224 | SWITCH,BLOCKED OUTLET,2.00"WC,NC | - | 1 | $ 91.05 | ADD TO CART | |
| P10110134 | SWITCH,GAS PRESSURE,LOW,4.4"WC | - | 1 | $ 112.27 | ADD TO CART | |
| P21037844 | SWITCH,ON/OFF | - | 1 | $ 40.17 | ADD TO CART | |
| P12985919 | T&P VALVE,1"M,2"CAV,210F,150PSI | - | 1 | $ 210.90 | ADD TO CART | |
| P10116790 | TUBING,1/4"IDX3/8"OD,22" | - | 1 | $ 25.75 | ADD TO CART | |
| P10116916 | TUBING,3/16"IDX5/16"OD,15" | - | 1 | $ 44.29 | ADD TO CART | |
| P10121218 | Transformer Primary 120/240 volts - Secondary 24 volts - 30 volts amperes | - | 1 | $ 97.85 | ADD TO CART | |
| P10117234 | VENTURI | - | 1 | $ 37.08 | ADD TO CART | |
| P10116894 | WINDOW OBSERVATION | - | 1 | $ 35.02 | ADD TO CART | |
| P10118402 | XRFMR-CABLE ASSY,IGNITION,DANFOSS,120V | - | 1 | $ 222.93 | ADD TO CART |
